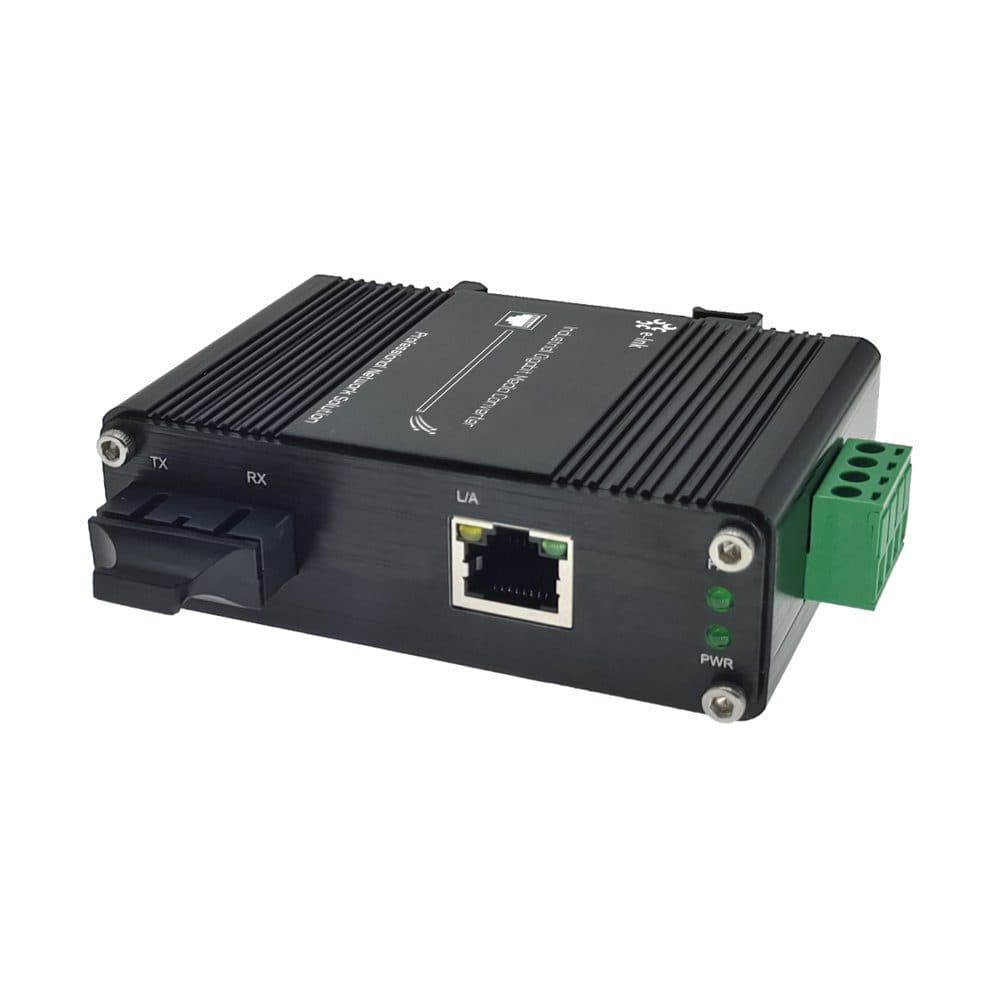

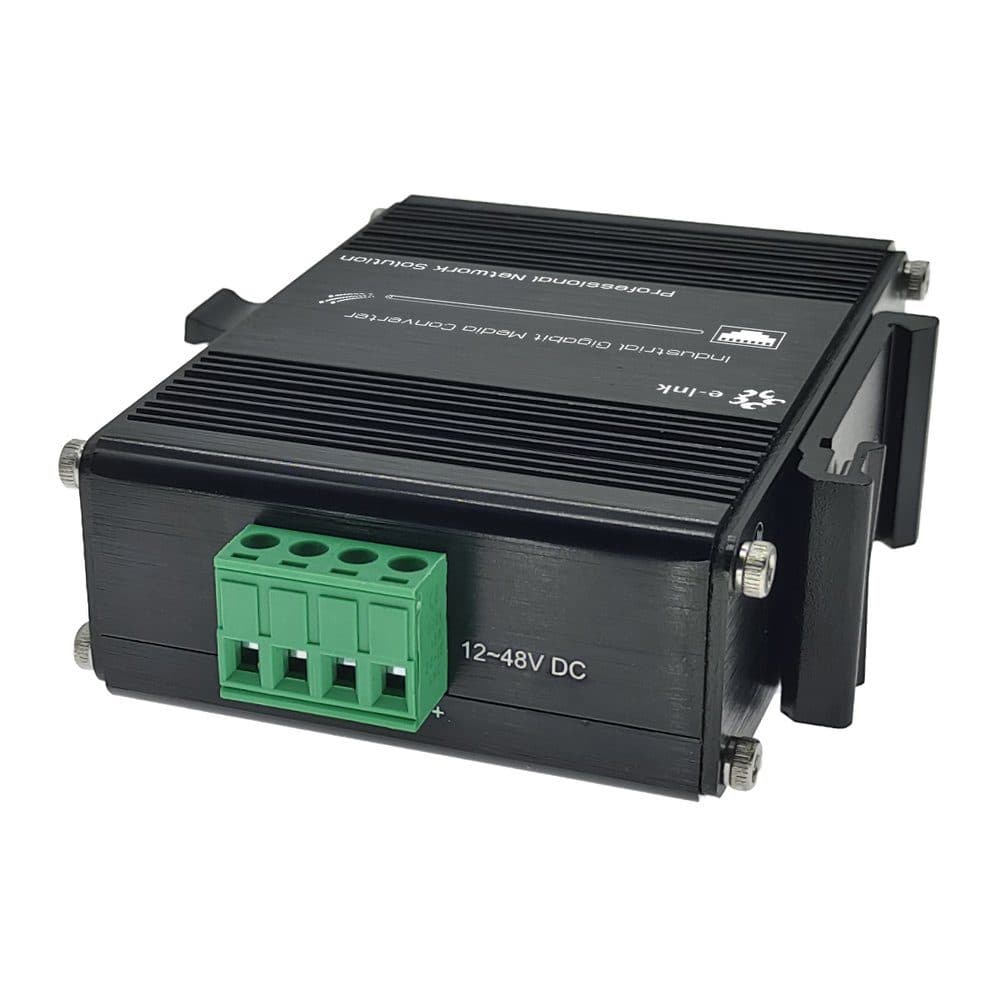

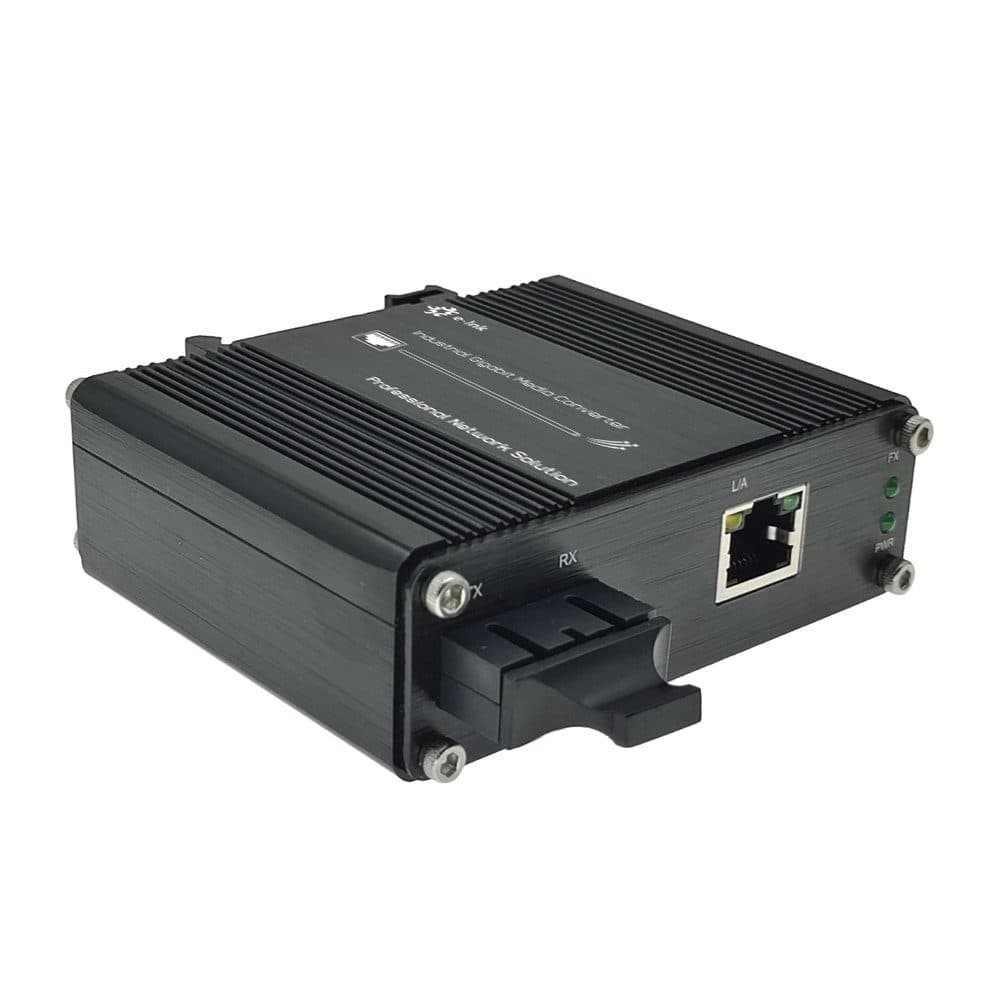

Media Converter Industrial RJ45 Ethernet Gigabit a Fibra monomodo Duplex SC, 1310nm, 20Km E-Link
SKU: LNK-IMC3012-20
Precio con transferencia
S/ 455.00
Precio con tarjeta (+3.5%)
S/ 470.93
Precio incluye IGV
Métodos de pago
• La serie LNK-IMC3012-20 proporciona conversión de medios entre fibra 10/100/1000BASE-T y 100/1000BASE-X. Es un producto industrial con un amplio rango de temperatura de funcionamiento de -40 °C a 75 °C y una carcasa de aluminio resistente. • Media Converter Industrial, 10/100/1000Base-T Ethernet a Fibra 1000Base-X, monomodo, 20km, 1310nm, SC, • standalone, Support DIN-Rail mounting and Wall mounting installation, • 12~48VDC power input, (no power supply adapter include) • El puerto Ethernet admite tanto el modo semidúplex como el modo dúplex completo. El diseño robusto del hardware garantiza que su equipo Ethernet pueda soportar condiciones industriales exigentes. • Soporte tecnico local • Garantia 12 Meses
Descripción y especificaciones
► 1-Port 10/100/1000BASE-T RJ45 Gigabit with auto MDI / MDI-X function
► 1 SC/UPC Duplex Port, 100Base-FX or 1000Base-X dual mode (auto detection)
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
ESPECIFICACIONES:
| Ethernet | |
| Standards: | IEEE802.3 10Base-T |
| IEEE802.3u 100Base-TX/FX | |
| IEEE802.3ab 1000Base-T | |
| IEEE802.3z 1000Base-X | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Processing Type: | Store-and-Forward |
| Forward Filter Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 1 Mbit |
| Max Packet Length: | 9K Bytes |
| Address Table Size | 2K MAC Addresses |
| Interface | |
| Connector: | 1x RJ45 |
| Optical Port: | 1 x SC100Base-FX or 1000Base-X dual mode (auto detection) Duplex SC/UPC |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC, 2-pin terminal block |
| Power Consumption: | 3W Max. |
| LED Indicators: | |
| PWR: | Power Status |
| L/A: | Data LINK Status |
| SPD: | Ethernet Status |
| 100M/1000M: | Fiber LINK Status |
| Dimensions (WxDxH): | 95 x 70 x 30 mm |
| Weight: | 0.25Kg |
| Casing: | AluminumCase |
| Mounting Options: | DIN-Rail / Wall-mount |
| Environmental | |
| Operating Temperature: | -40°C to 75°C (-40°F to 167°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Regulatory Approvals | |
| ISO9001, CE, FCC, RoHS | |
| EMI:
EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
|
| EMS:
IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|
