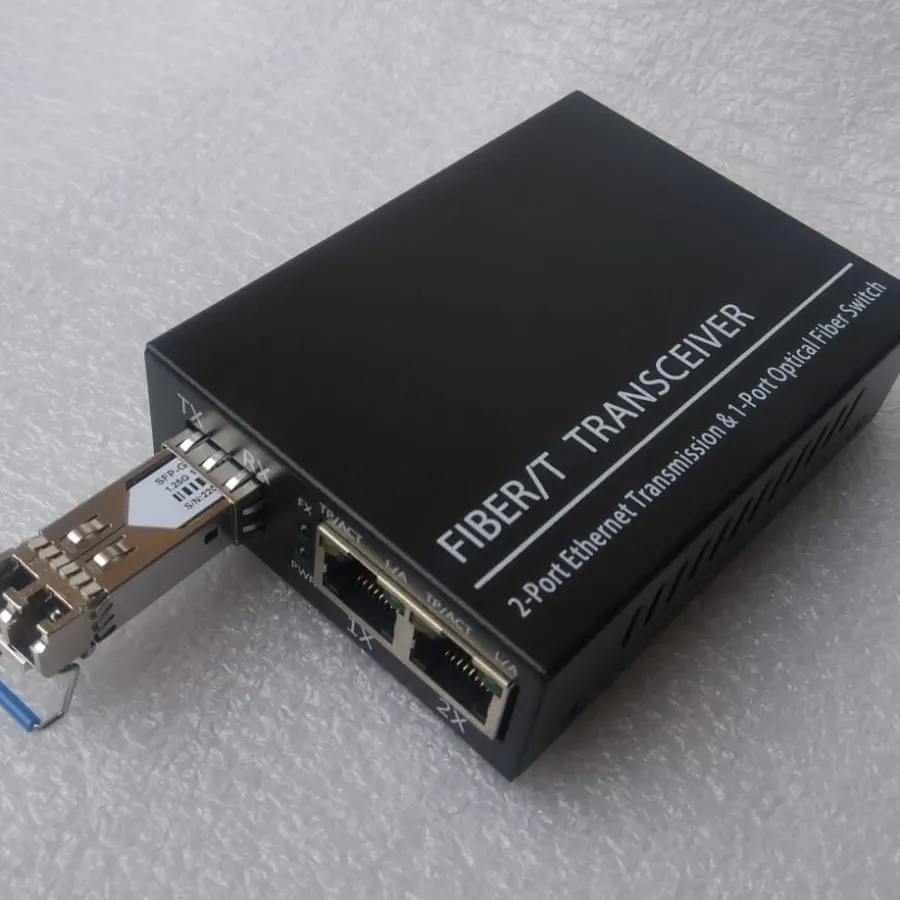

Media Converter (Gigabit & PoE) 1 puerto de Fibra SFP y 2 port RJ45 Ethernet Gigabit PoE + Transceiver 1GB SM 20Km
S/455.00 Inc. IGV

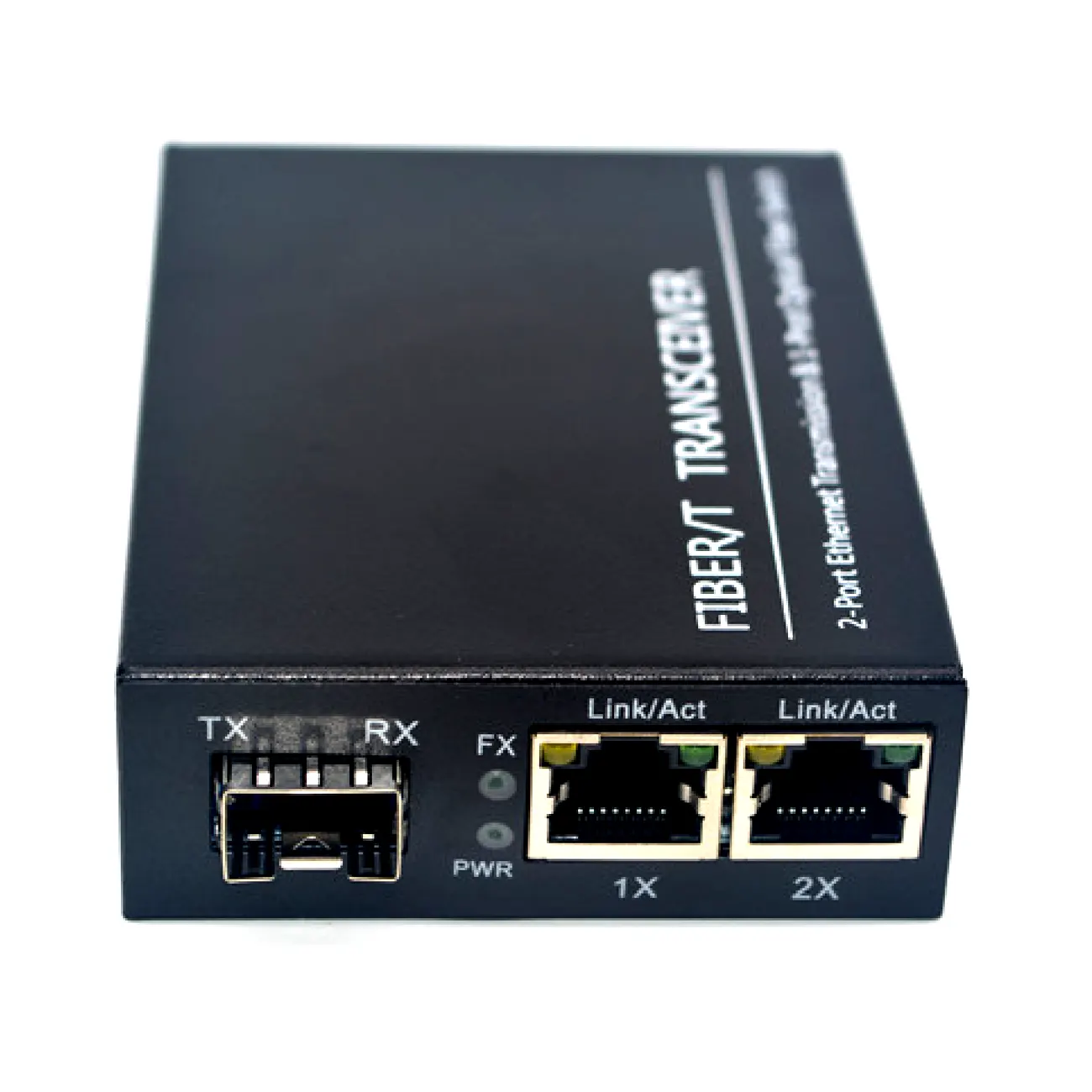

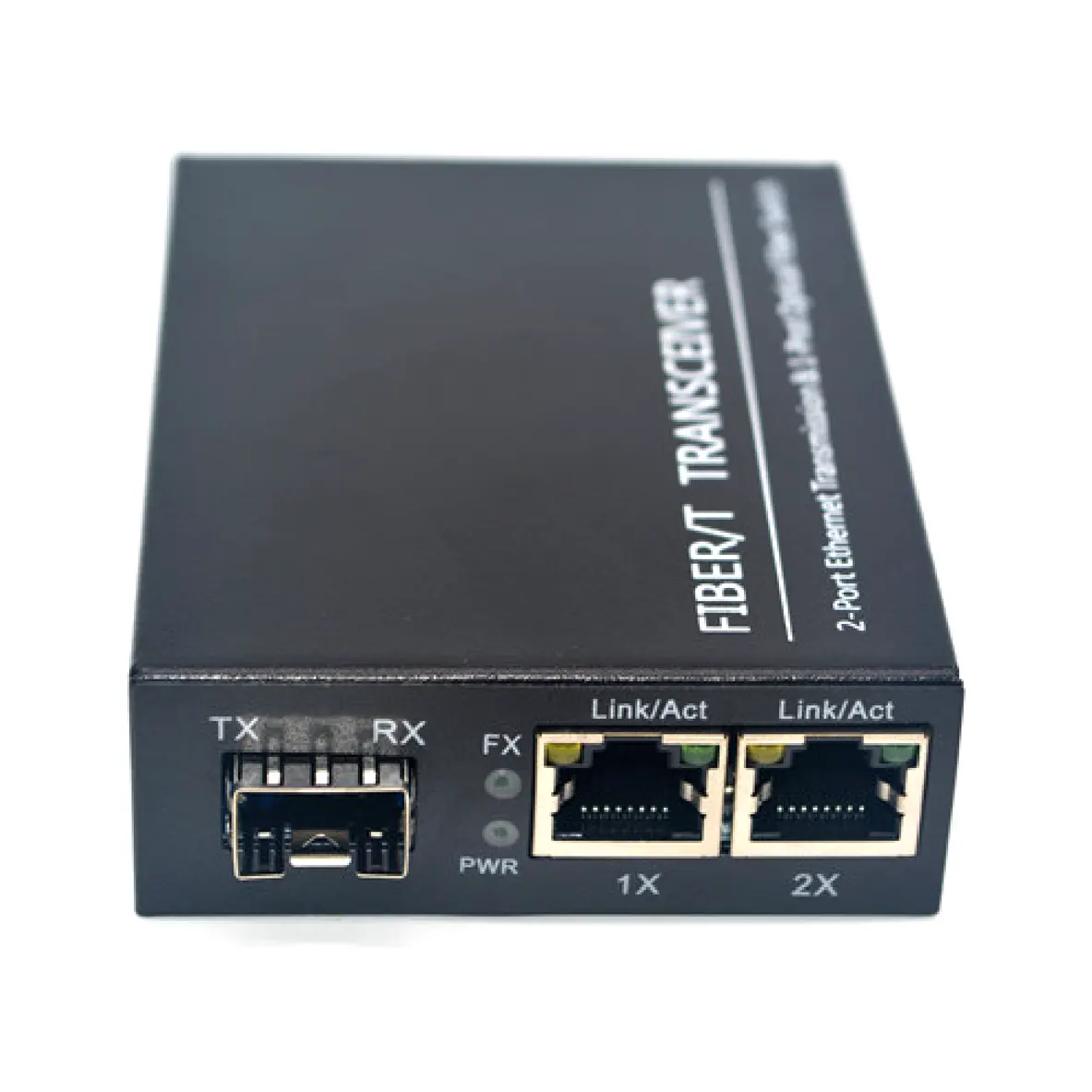

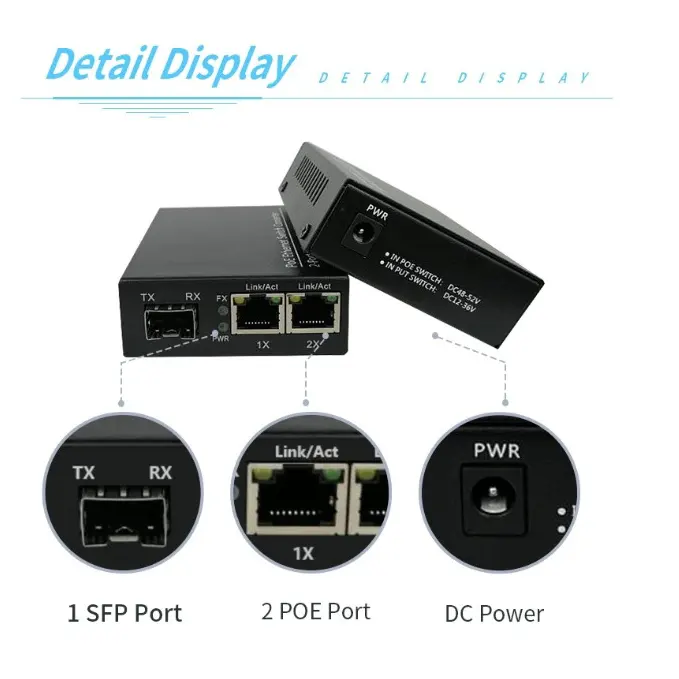

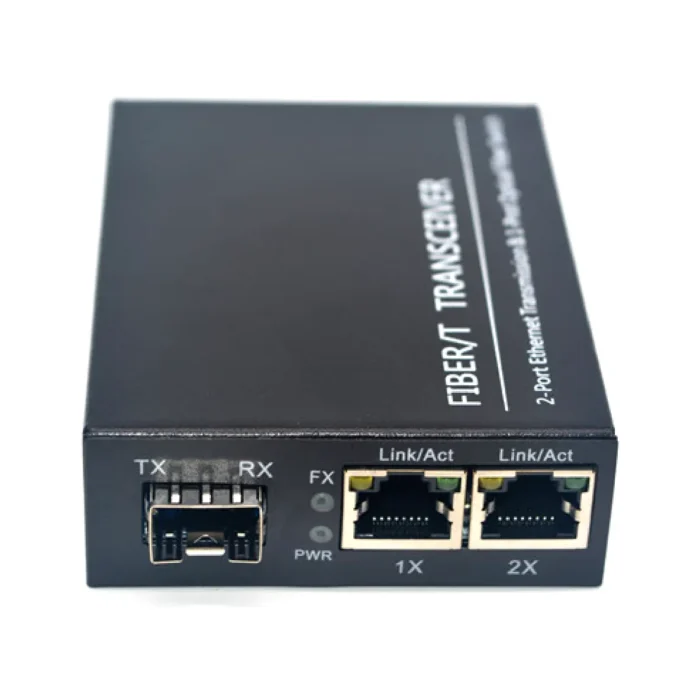

El convertidor de medios de fibra óptica Gigabit Ethernet de 3 puertos está equipado con 2 puertos PoE RJ45 -10/100/1000M y 1 puerto de fibra 1000M .
El producto es de tamaño compacto, rendimiento estable, excelente calidad.

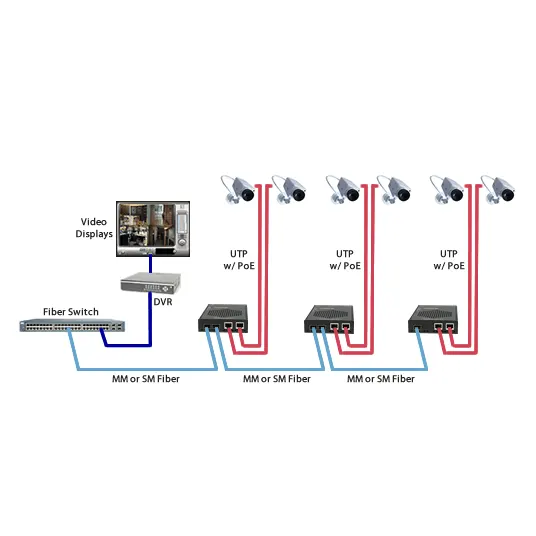

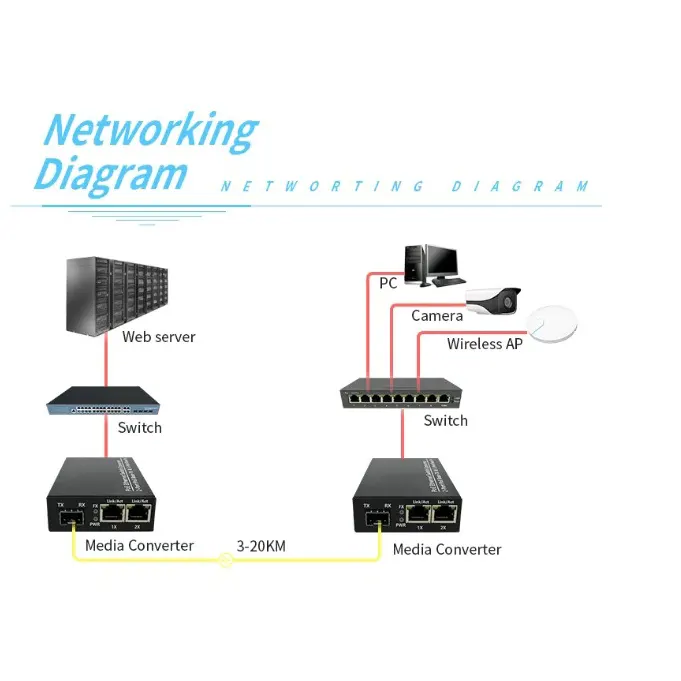

Se aplica ampliamente en redes Ethernet de fibra óptica para conectividad empresarial.
Operating standards：IEEE802.3z/AB，10/100/1000Base-T and 1000Base-SX/LX
MAC address table: 1K
Frame buffer memory：1MKb
Fiber optic media convertering capacity：12G
Connector: UTP：RJ-45，10/100/1000Mbps；PoE IEEE 802.3af y 802.3at
SFP Fiber: 1000Mbps (1Gb)；
Cable：UTP：Cat.5 or 6 UTP（the max distance up to 100m）
Multimode Fiber：50/125，62.5/125μm
Singlemode Fiber：8/125，8.7/125，9/125μm（the max distance up to 10～100 km）
Flow control：Full Duplex: IEEE802.3x flow control；
Half Duplex: back pressure flow control
LED：PWR，F1 Link/Act，F2 Link/Act；TP1～TP4 Link/Act，TP1～TP4 100，TP1～TP4 1000；
Power Requirement: AC220V(100-240V)，50～60Hz； DC：62V，2A
Ambient Temperature: 0 ～ +50℃；
Storage Temperature: -20 ～ +70℃；
Humidity：5% ～ 90%；
Dimensions：25(high)×180(width)×100(length)mm；

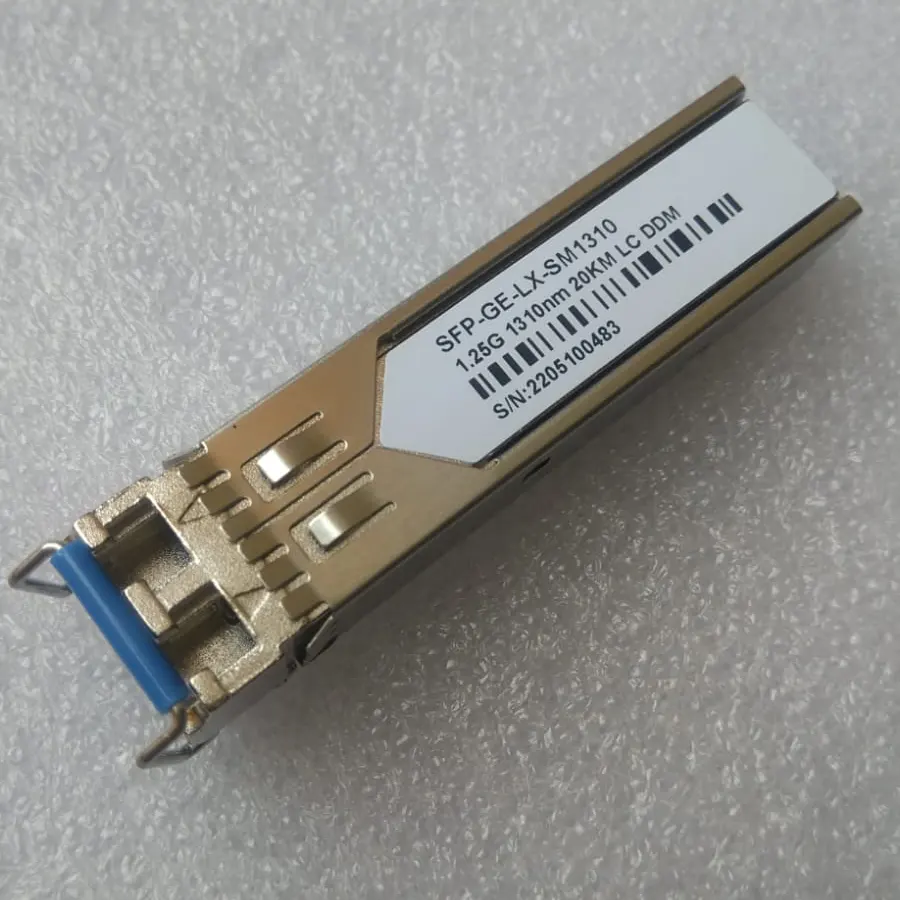

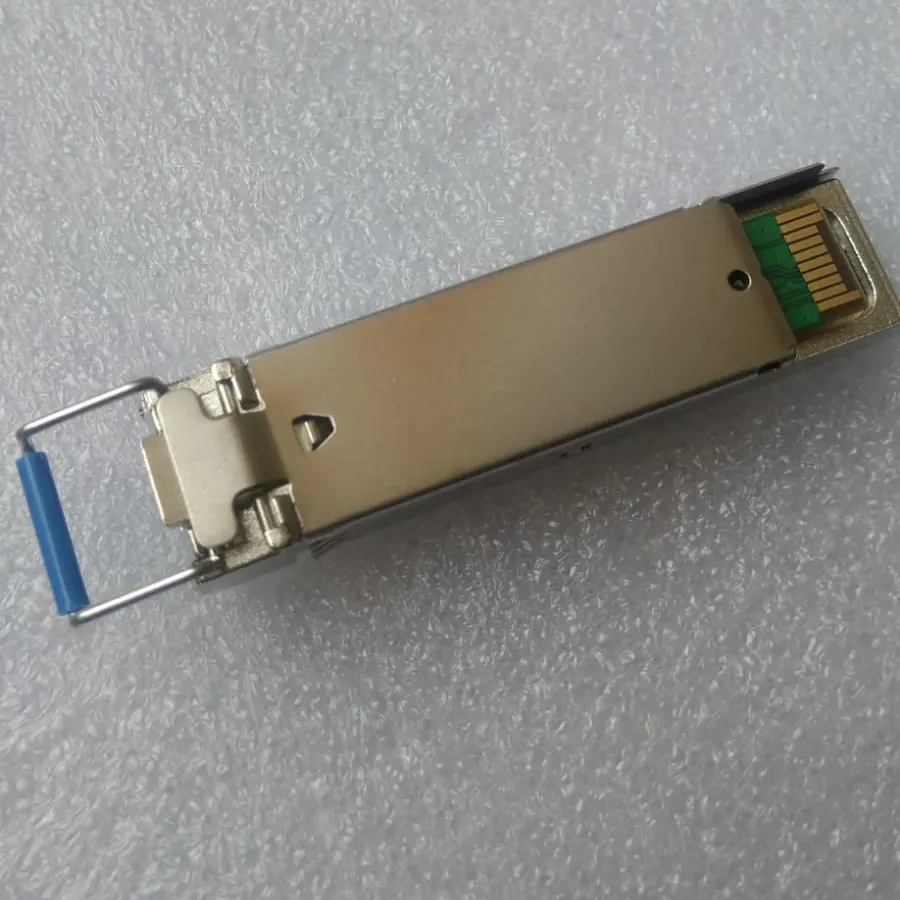

Optional Module Transceiver: SFP-GE-LX-SM1310
| Model | SFP-GE-LX-SM1310 |
| Form factor | eSFP – MiniGbic |
| Application standard | 1000BASE-LX10/LH |
| Connector type | LC |
| Optical fiber type | SMF |
| Working case temperature [°C(°F)] | 0°C to 70°C (32°F to 158°F) |
| Transmission rate [bit/s] | 1 Gbit/s /Wavelength 1310nm |
| Target transmission distance [km] | Single-mode fiber: 20 km |
