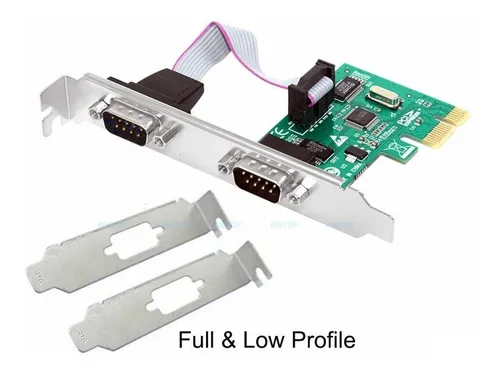

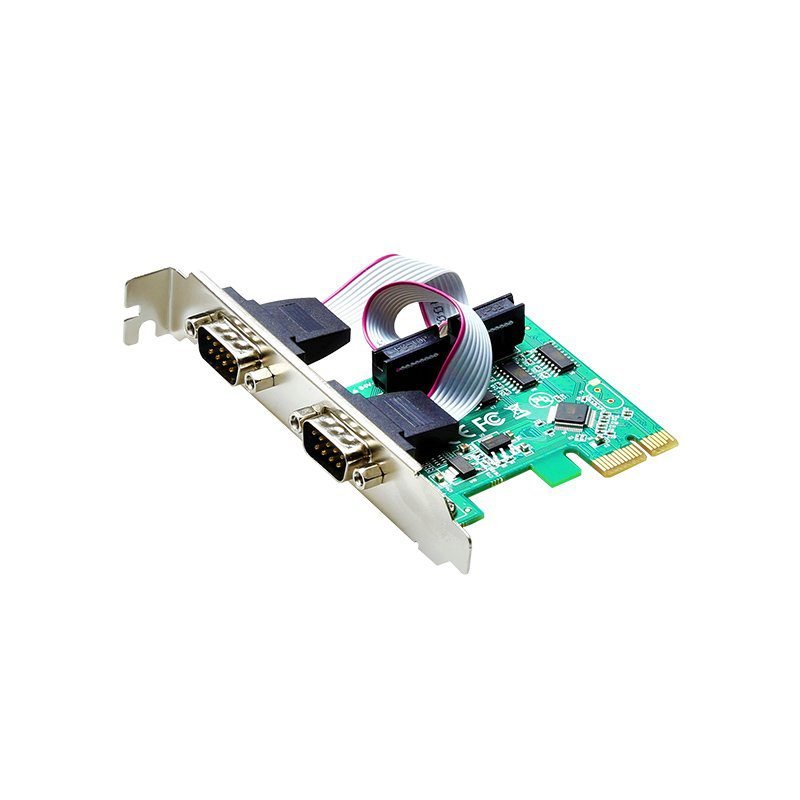

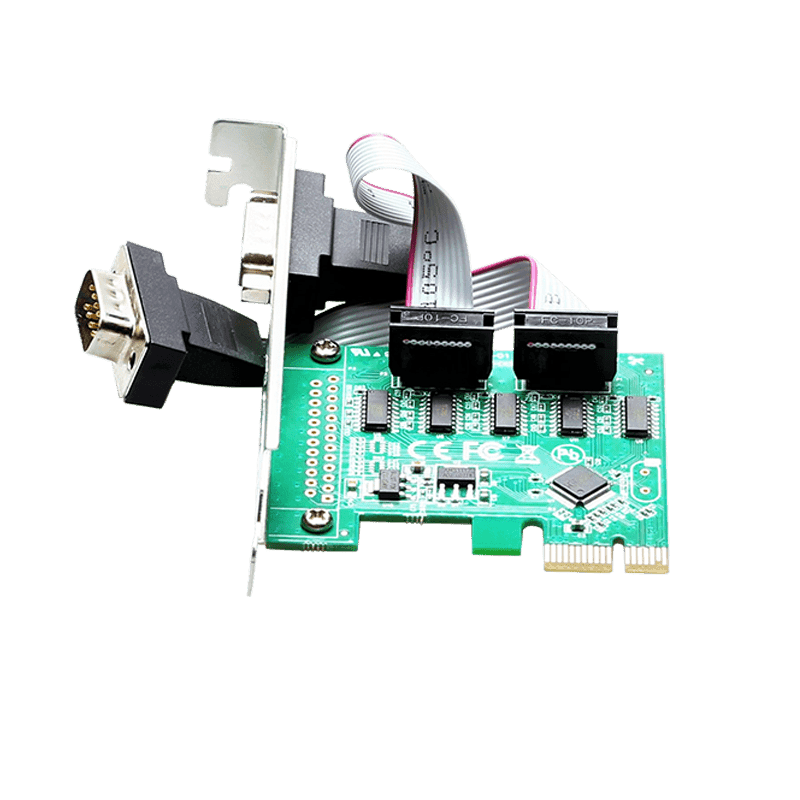

Tarjeta PCI-Express con 2 Puertos Serial RS-232 Alto y Bajo Perfil
S/70.00 Inc. IGV
EN-PCIE-2S Encore Electronics; Adaptador PCI-Express con 2 puertos Serial Supports RS232, RS485 & RS422 modes
Trae soporte para alto y bajo Perfil.
| Modelo | EN-PCIE-2S |
| Chipset | WCH/CH382L |
| Port number | 2* Serial port |
| Interface | PCI Express 1x slot |
| Dimension | 65.4*60*16mm |
| Support OS | Windows 10/11 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista(32/64), XP(32/64), 2000 Windows Server 2012, 2008 R2, 2003(32/64) Linux 2.4.x and later (Tested up to 3.5) |
| Environment | Operating Temperature: 0 ℃-50 ℃ |
| Relative Humidity: 10%-90%(non-condensing) | |
| Storage Temperature: -0℃-80℃ | |
| Relative Humidity: 5%-90%(non-condensing) | |
| Features | Serial Port: Supports RS232, RS485 & RS422 modes Bi-directional speeds from 50 bps to 16 Mbps/Port Full Serial modem control Supports Hardware, Software flow control 5, 6, 7, 8 and 9-bit Serial format support Even, Odd, None, space & Mark parity supported Custom BAUD Rates supported with external clock or by programming internal PLL On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port Supports remote wake up and power management features Serial Port transceiver shutdown support Supports Slow IrDA on all Serial Ports IEEE1284 |
