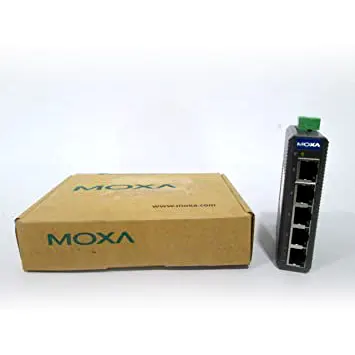

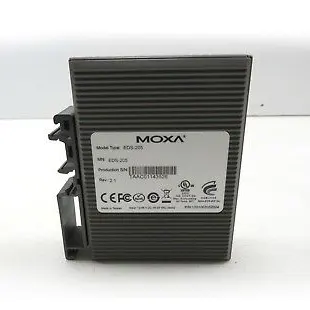

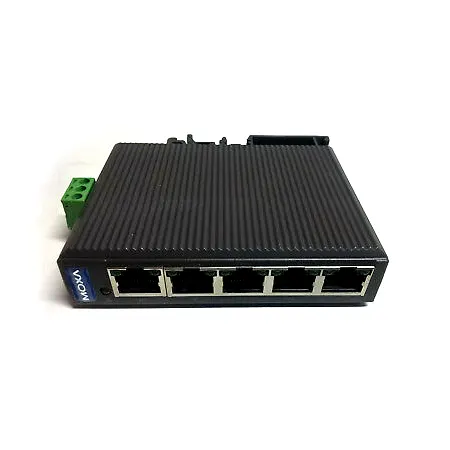

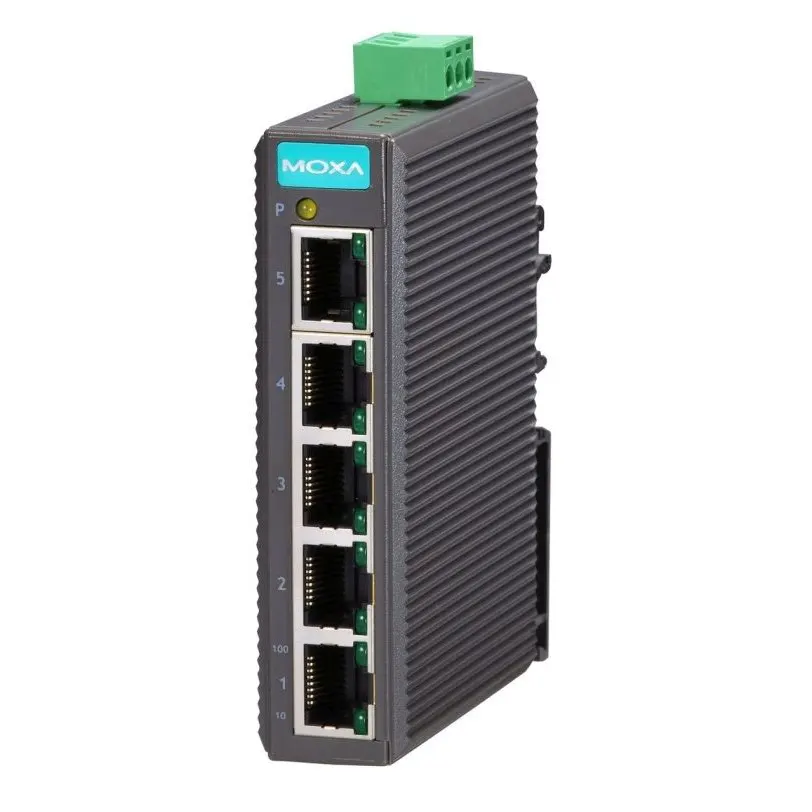

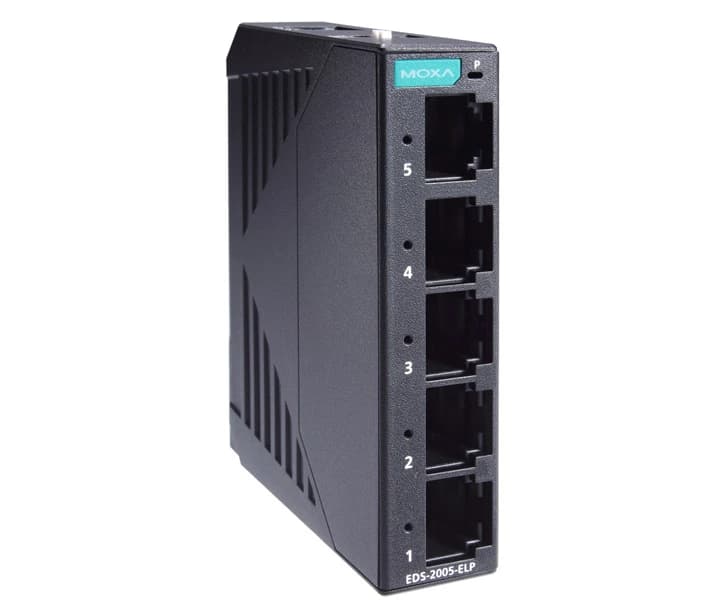

Switch Industrial 5-port Ethernet Gigabit DIN -10 to 60°C MOXA

• Standards

  IEEE 802.3 for 10BaseT
  IEEE 802.3u for 100BaseT(X) and 100BaseFX
  IEEE 802.3x for flow control

• 10/100BaseT(X) Ports (RJ45 connector)

  Full/Half duplex mode
  Auto MDI/MDI-X connection
  Auto negotiation speed

Switch Properties

• Processing Type Store and Forward

• MAC Table Size 1 K

  Packet Buffer Size 512 kbits

Power Parameters

• Input Voltage 24 VDC

  Input Current 0.11 A @ 24 VDC

• Operating Voltage 12 to 48 VDC

  Connection

• 1 removable 3-contact terminal block(s)

• Overload Current Protection

  1.1 A @ 24 VDC

• Reverse Polarity Protection

  Supported

Physical Characteristics

• Housing Plastic

  IP Rating IP30

• Dimensions 24.9 x 100 x 86.5 mm (0.98 x 3.94 x 3.41 in)

  Weight 135 g (0.30 lb)

• Installation DIN-rail mounting

  Environmental Limits

• Operating Temperature -10 to 60°C (14 to 140°F)

• Storage Temperature (package included) -40 to 85°C (-40 to 185°F)

• Ambient Relative Humidity 5 to 95% (non-condensing)

Standards and Certifications

• Safety EN 60950-1, UL 508

  EMC EN 55032/24

• EMI CISPR 32, FCC Part 15B Class A

  EMS

• IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
  IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
  IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
  IEC 61000-4-5 Surge: Power: 1 kV; Signal: 1 kV
  IEC 61000-4-6 CS: 3 V
  IEC 61000-4-8 PFMF

• Shock IEC 60068-2-27

  Vibration IEC 60068-2-6

• Freefall IEC 60068-2-31

  MTBF Time 3,915,945 hrs
