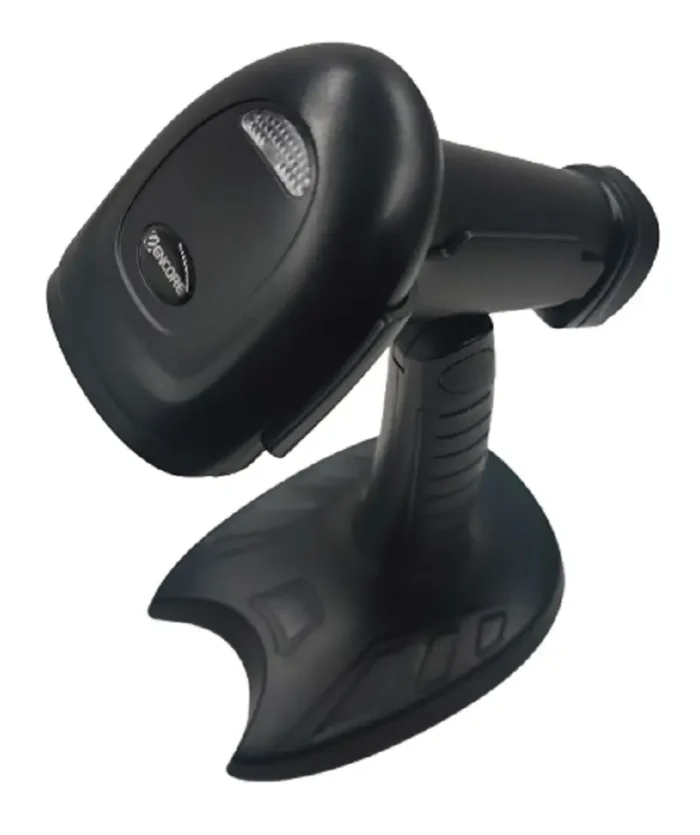

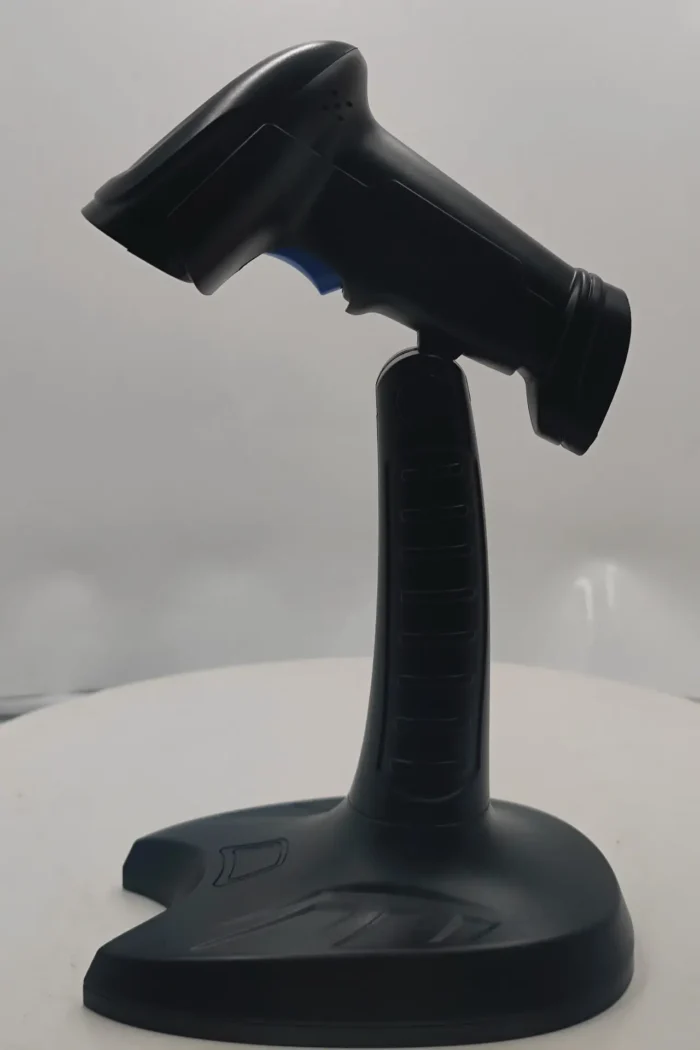

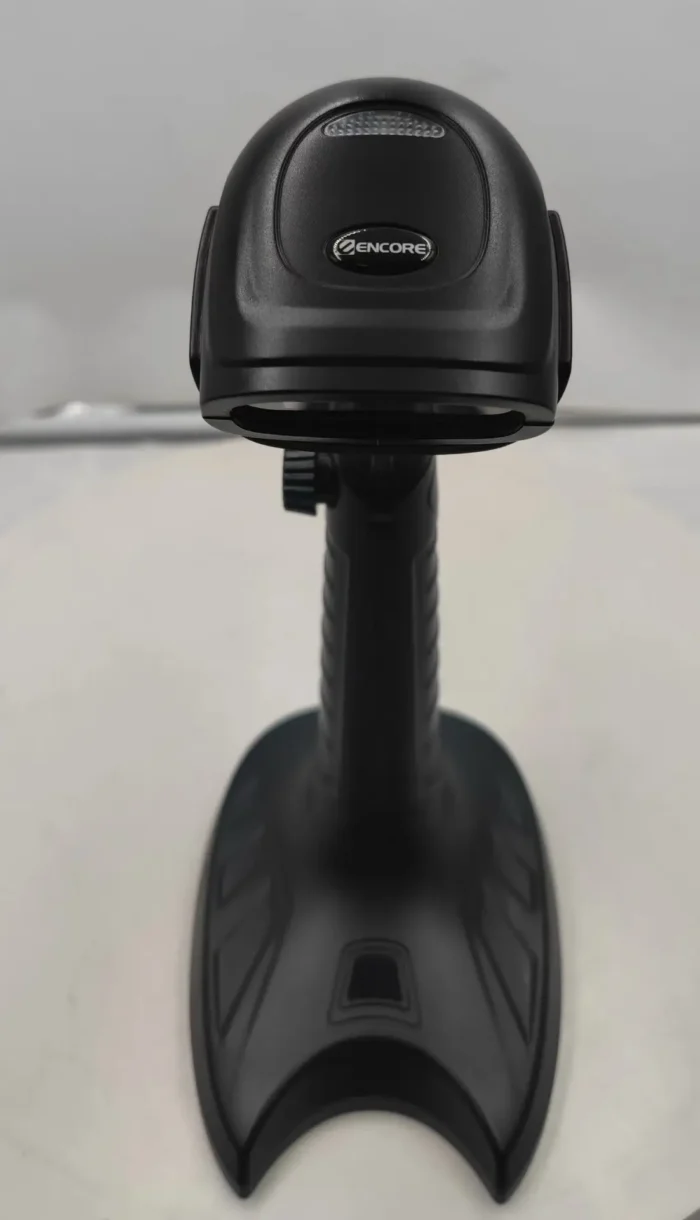

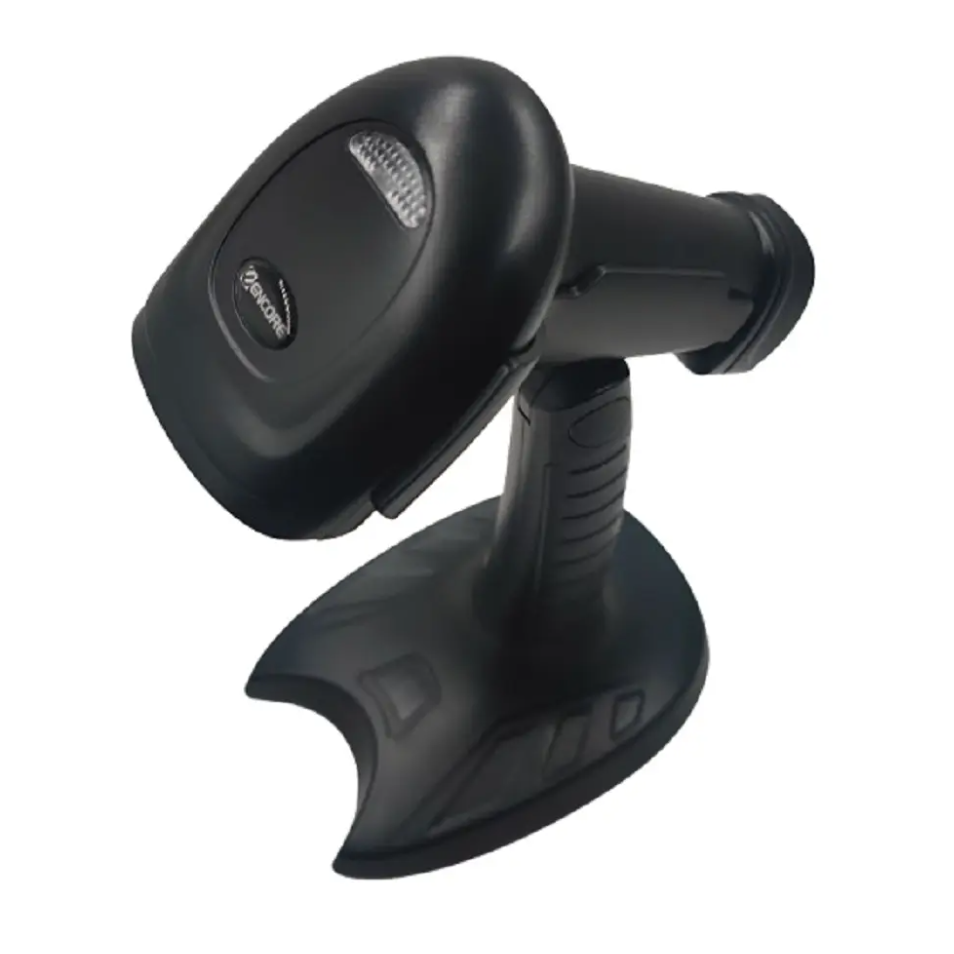

Lector de codigos de barras Scanner 1D, 2D, QR ENCORE EN-SR-298C (CON BASE)
S/157.50 Inc. IGV
El escáner de códigos de barras para uso general EN-SR-298C ofrece escaneos rápidos 1D, 2D, QR y confiables de manera ergonómica, liviana, resistente a caídas IP54, ideal para el comercio y la industria.
| Performance Parameters | SENSOR Resolution | 960*640 | |||
| Capacity | 1D | EAN-8，EAN-13，UPC-A，UPC-E，Code 39，Code 93，Code 128，EAN128，Codebar，industrial 2 of 5，Interleave 2 of 5， Matrix 2 of 5，MSI,etc | |||
| 2D | PDF417、MICROPDF417、Datamxtrix、QR、Maxicode、Aztec,etc | ||||
| Depth of Field | Tested Code | Minimum | Maximum | ||
| 5mil code39 | 1.5CM | 8CM | |||
| 13mil EAN13 | 4CM | 23CM | |||
| 15mil DM | 3CM | 14CM | |||
| 15mil QR | 2CM | 13CM | |||
| 15MIL PDF417 | 6CM | 18CM | |||
| System Compability | Linux，Android，Windows XP，Windows VISTA，Windows 7， Windows 8，Windows 10，Windows Server 2003，Windows Server 2008，Windows Server 2010 | ||||
| Light Source | Wavelength:675nm±3nm Infrared LED | ||||
| Decode Accuracy | 3mil | ||||
| Code Available | 1D，2D Codes printing on Paper or film on Cellphone | ||||
| Scanning Speed | 230 Times/Second | ||||
| Symbol Contrast | 20% | ||||
| Scanning Angle | Horizontal : 72° Vertical：82° Rotated:360° | ||||
| OCR Character Decode | Could be customized | ||||
| Environment Parameters | Drop | Design to withstand 1.8 M drops to concrete 300 TIMES | |||
| Environmental Sealing | IP54 | ||||
| Working Temperature | -20-55℃ | ||||
| Conserve Temperature | -40-65℃ | ||||
| Working Humidity | 5-95% Non-Condensed | ||||
| Conserve Humidity | 5-95% Non-Condensed | ||||
| Environment Light | 0-120000LUX | ||||
| Physical Parameters | Net Weight | 125g | |||
| Packing Weight | 330g | ||||
| Host Size(L*W*H) | 167mm* 72mm*85mm | ||||
| Packing Size(L*W*H) | 185mm*110mm*80mm | ||||
| Length of Cable | 2 meters（±0.1） | ||||
| Protocol Interface | USB(Drive Free) USB Virtual RS232(Install Drive) RS232(Drive Free) | ||||
| Prompting | Buzzer,Red&Blue LED | ||||
| Maximum Current | 373MA | ||||
| Working Current | 168MA | ||||
| Standby Current | 72MA | ||||
| Certification | CE、FCC、ROHS、IEC60950 、IEC62471、 EN55022、 EN55024、 EN61000-3、 IEC62321 EN60950、 EN60529 | ||||
