Convertidor Serial Inalambrico RS232/RS485 a Wi-Fi 6 Dual Band Grado industrial IP30
S/899.00 Inc. IGV

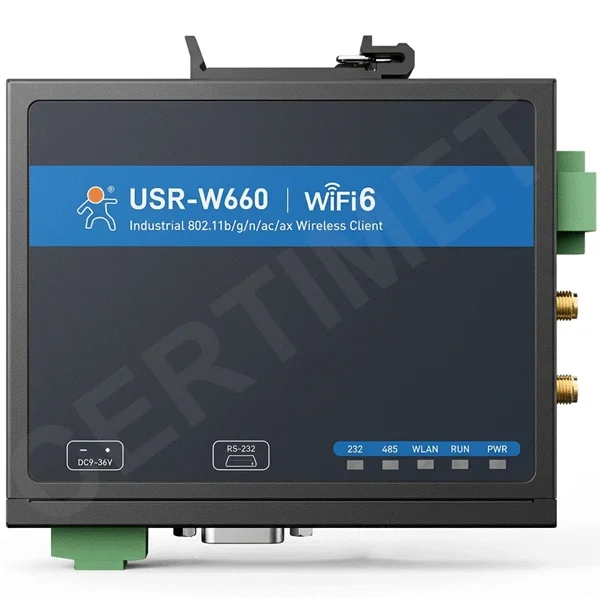

El USR-W660 es un potente servidor de dispositivos serie con Wi-Fi de doble banda, capaz de establecer comunicación de datos entre dispositivos serie y dispositivos Ethernet/Wi-Fi.
Incorpora un procesador Qualcomm de cuatro núcleos de alto rendimiento con una frecuencia de hasta 1,2 GHz.
El USR-W660 cuenta con interfaces RS232 y RS485, dos puertos Gigabit Ethernet RJ45 y conectividad Wi-Fi de doble banda (2,4 GHz y 5,8 GHz).
Es compatible con la función de roaming Wi-Fi con tiempos de conmutación rápidos, lo que lo hace especialmente adecuado para aplicaciones móviles, como vehículos de guiado automático (AGV), robots, etc.
| Serial port | |
| No. | 1 x RS485, 1 x RS232, can work simultaneously. |
| Baud rates | RS232(bps):1200/2400/4800/9600/19200/38400/57600/115200 RS485(bps): 1200/2400/4800/9600/19200/38400/57600/115200/230400 |
| Data bits | 7, 8 |
| Stop bits | 1, 2 |
| Parity | NONE, ODD, EVEN |
| Packaging Interval | Range: 1 ~ 3000ms, default: 50ms |
| Packaging Length | Range: 5 ~ 1500 bytes, default: 1000 bytes |
| Ethernet Ports | |
| No. | 2 x Ethernet ports: 1 x WAN/LAN(configurable), 1 x LAN |
| Interface | RJ45, 10/100/1000 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX, 1.5KV network isolation transformer protection |
| Wi-Fi | |
| Standards & Frequency | IEEE 802.11b/g/n/ac/ax, 2.4GHz & 5.8G |
| Working Mode | AP/STA/AP+STA/Bridge |
| Data speed | 1201Mbps(5.8GHz) & 573.5Mbps(2.4GHz) |
| MU-MIMO | 2 x 2 |
| OFDMA | DL-OFDMA 8(8 users); UL-OFDMA (4 users) |
| Covering distance | 200 meters by line of sight.Actual transmission distance depends on environment of the site. |
| Wi-Fi Users | 8 + |
| Antenna | 2 x SMA-female |
| Wi-Fi Roaming | √ |
| Physical Property | |
| Casing material | Metal shell, IP30 protection |

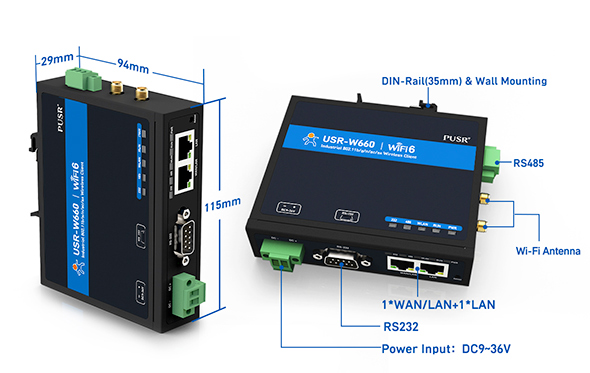

| Dimensions | 115*94*29mm(L x W x H, antenna pedestal, terminal block and DIN Rail are not included) |
| Installation | Wall mounting, Din rail mounting, desktop placement |
| EMC | Surge protection: level 3, IEC61000 ES |
| Items | Description |
| Power Supply | DC: 9~36V, 2-pin terminal blocks, reverse polarity protection, surge protection |
| Working Current | Average: 700mA@12V, max: 2A @12. |
