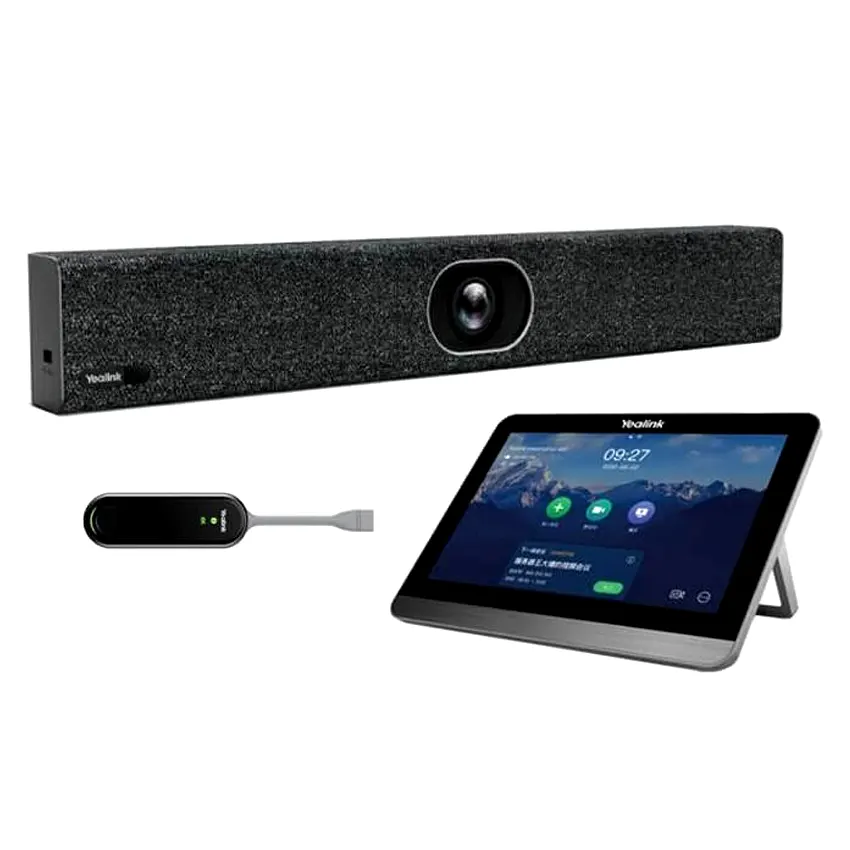

Yealink A20 MeetingBar con paquete de panel táctil de colaboración con CTP18 & WPP30
- Barra de colaboración de vídeo Android todo en uno para salas pequeñas y pequeñas
- Qualcomm Snapdragon 845 chipset
- ALL-IN-ONE design
- 20MP camera
- 133° Super filed of view
- Electric Privacy Shutter
- Dual screen
- Auto framing and speaker tracking
- Built-in Bluetooth
- Built-in dual-band Wi-Fi
- Content sharing
- Whiteboard
- Certified by Zoom & Microsoft Teams
Camera
• 20MP Camera
• 133° field of view
• 8x e-PTZ camera
• Electric privacy shutter
• Intelligence Features
– Auto Framing
– Speaker Tracking ①
Audio
• Built-in 8 MEMS microphone array
• Built-in 5W high fidelity speaker
• Yealink Noise Proof Technology
• Full-duplex
• Echo cancellation
Operating System: • Android 9.0
Meeting Features
• Calendar
• One-click join
• Meeting collaboration
– Content sharing
– Whiteboard
• Meeting control:
– Add participates
– Hold/Resume
– Camera On/Off
– Mute/Unmute
– Volume Up/Down
– Hang up
• Teams Edition
– Microsoft DM
– Proximity join
• Zoom Edition
– Zoom DM
– Direct sharing
Video Standard and Network Suitability
• Video codecs: H.264 High profile, H.264 SVC, H.264
Network and Security Features
• Built-in dual-band Wi-Fi (2.4GHz/5GHz)
• Built-in Bluetooth
• IPv4 and IPv6, DHCP/static IP
• HTTP/HTTPS web server
• SRTP/TLS, AES 256-bit encryption
• QoS: 802.1p/q, Diff-serv
• VLAN, LLDP
• IEEE802.1X
– EAP-MD5/EAP-TLS
– PEAP-MSCHAPv2
– EAP-TTLS/EAP-MSCHAPv2
• Network diagnosis: Ping, Trace route
• Time and date synchronization using SNTP
• Built-in certificate
• Simple Certificate Enrollment Protocol (SCEP)
* coming soon
Connections
• 2 x HDMI output (CEC supported)
• HDMI input (through the VCH51 Sharing Kit)
• 1 x USB 2.0
• 1 x 10/100M/1000M Ethernet port
• 1 x Yealink VCH port (RJ-45)
• 1 x Power port
• 1 x Security lock slot
• 1 x Reset slot
Other Physical Features
• Storage: built-in 64 GB (Available: 40G)
• Chipset: Qualcomm Snapdragon 845 chipset
• Power Adapter: AC 100~240V input
• USB Output: 5V 0.5A
• Power consumption (PSU): Idle < 10W; Normal operating: 10.5W; MAX: 14W
• Dimension (W.D.H): 600 mm x 68 mm x 82 mm
• Operating humidity: 10~95%
• Operating temperature: 0~40°C
• Storage temperature: -30~70°C
MeetingBar A20 Package
• Package contents:
– MeetingBar A20 endpoint
– 3m Ethernet cable
– 2 x 1.8m HDMI cable
– Mounting Bracket and Accessories
– Power adapter
– Quick Start Guide
– Controller (optional):
CTP18 Touch Panel
VCR20 Remote Control
– Content sharing(optional):
VCH51 Sharing Kit (HDMI/USB-C) ②
WPP20 Wireless Presentation Pod ③
• Carton Meas: 674*136*195mm
MeetingBar A20 + CTP18 Package
• Carton Meas: 685*293*215mm
