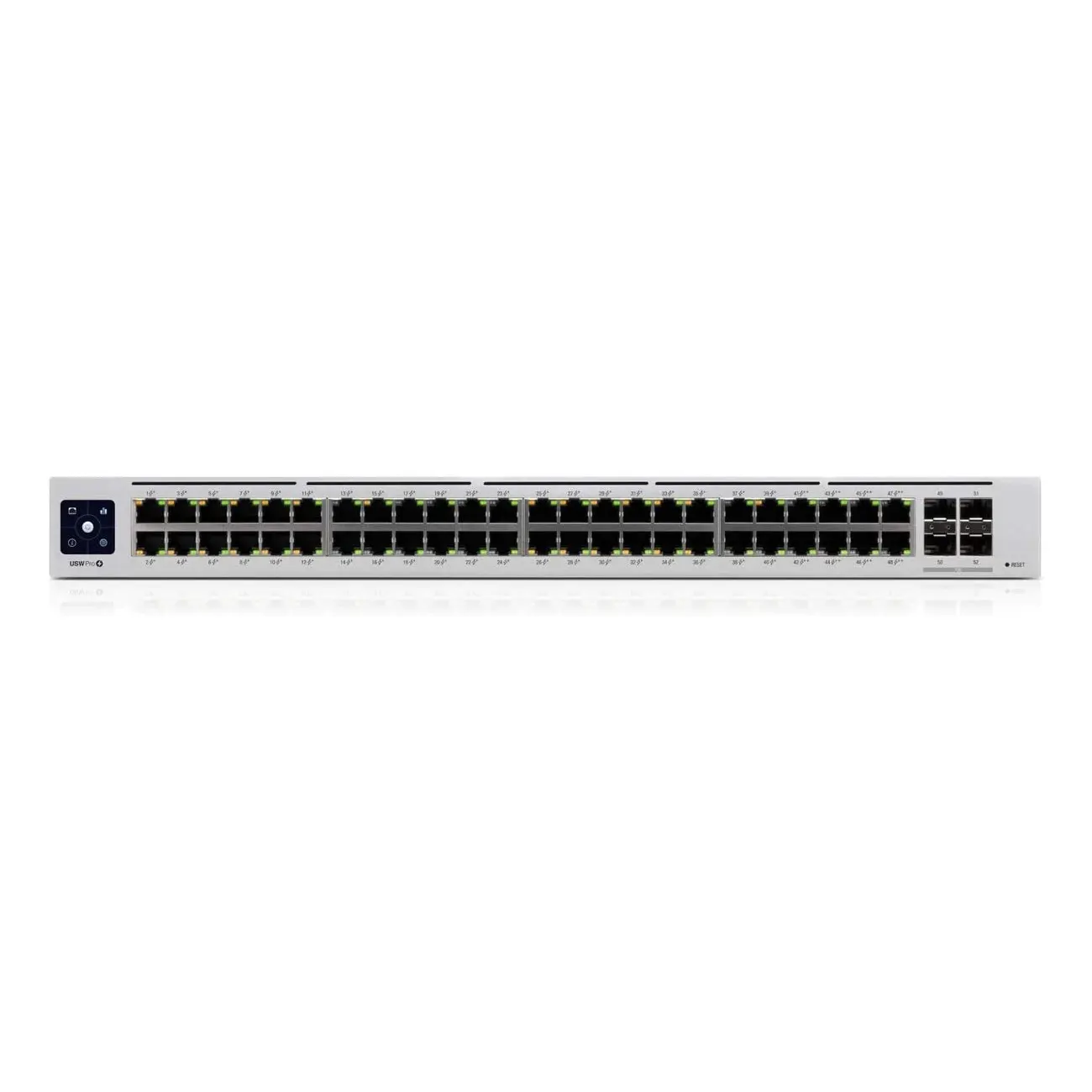

Ubiquiti UniFi Switch USW-PRO-48-POE Gen2, Switch PoE 48 puertos Gigabit Ethernet y 4 slots SFP+
USW-PRO-48-POE es un switch Gigabit Capa 2 y Capa 3 configurable con detección automática 802. 3at PoE+ y 802. 3BT PoE++ . cuarenta puertos PoE+ y ocho puertos Ethernet PoE++ RJ45 tienen un presupuesto PoE total de 600 W, y cuatro puertos SFP+ que ofrecen opciones de enlace ascendente de 10 Gbps.
Switch Ubiquiti USW-PRO-48-POE
Management interface Ethernet In-Band
Networking interface (48) GbE RJ45 ports
(4) 1/10G SFP+ ports
PoE interface (40) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput 88 Gbps
Switching capacity 176 Gbps
Forwarding rate 130.944 Mpps
Power method Universal input, 100—240V AC, 50/60 Hz
USP RPS DC input, 52V DC, 11.54A / 11.5V DC, 5.22A
Power supply AC/DC, internal, 660W
Supported voltage range 100—240V AC
Max. power consumption 60W (Excluding PoE output)
Total available PoE 600W
Max. PoE wattage per port by PSE PoE+: 32W
PoE++: 64W
Voltage range PoE mode PoE: 44—57V
PoE+: 50—57V
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3″ touchscreen
Button Factory reset
Shock and vibration ETSI300-019-1.4 Standard
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
Ethernet PoE
Speed/link/activity
SFP+ Link/activity
RPS Status
Application Requirements
UniFi Network Version 5.10.5 and later
