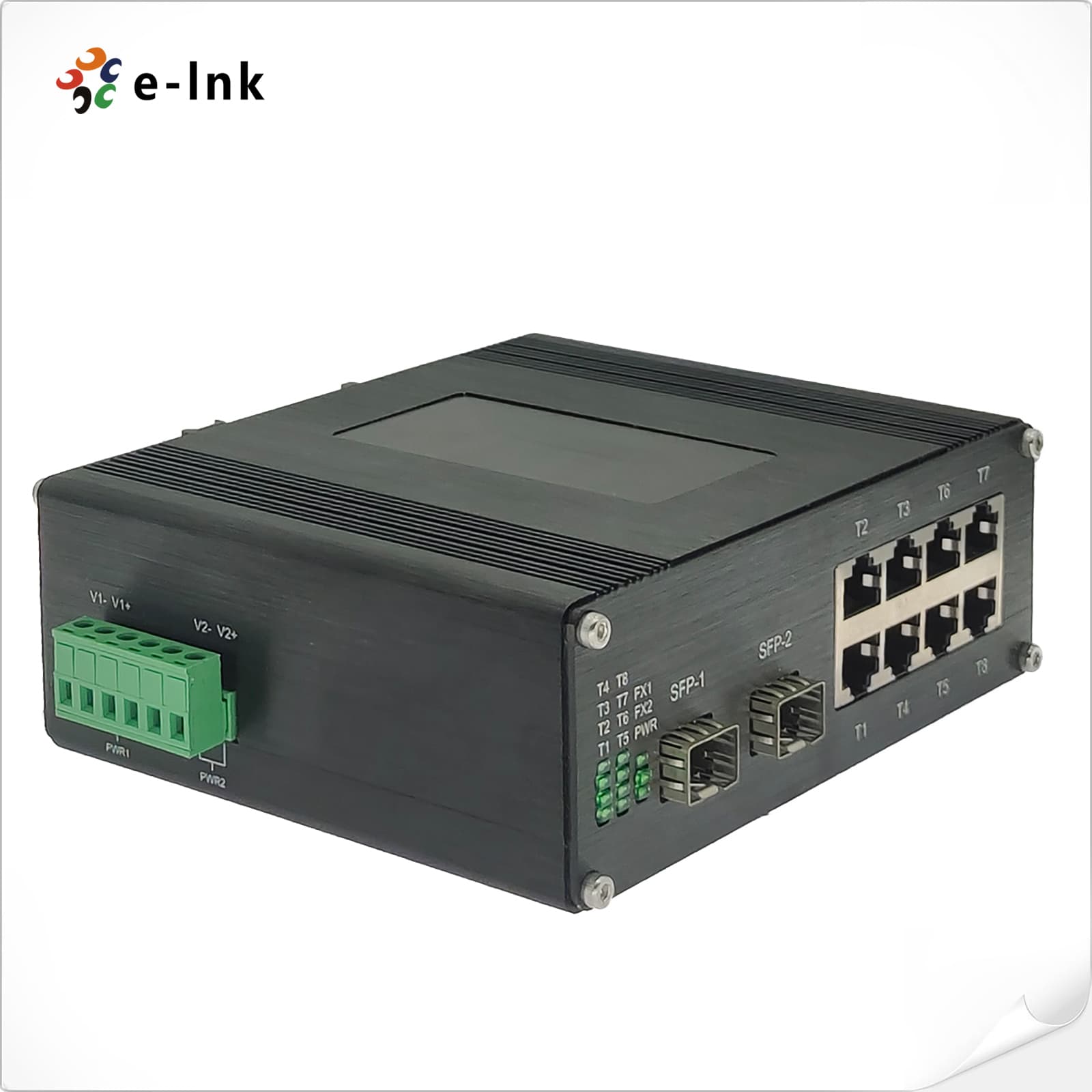

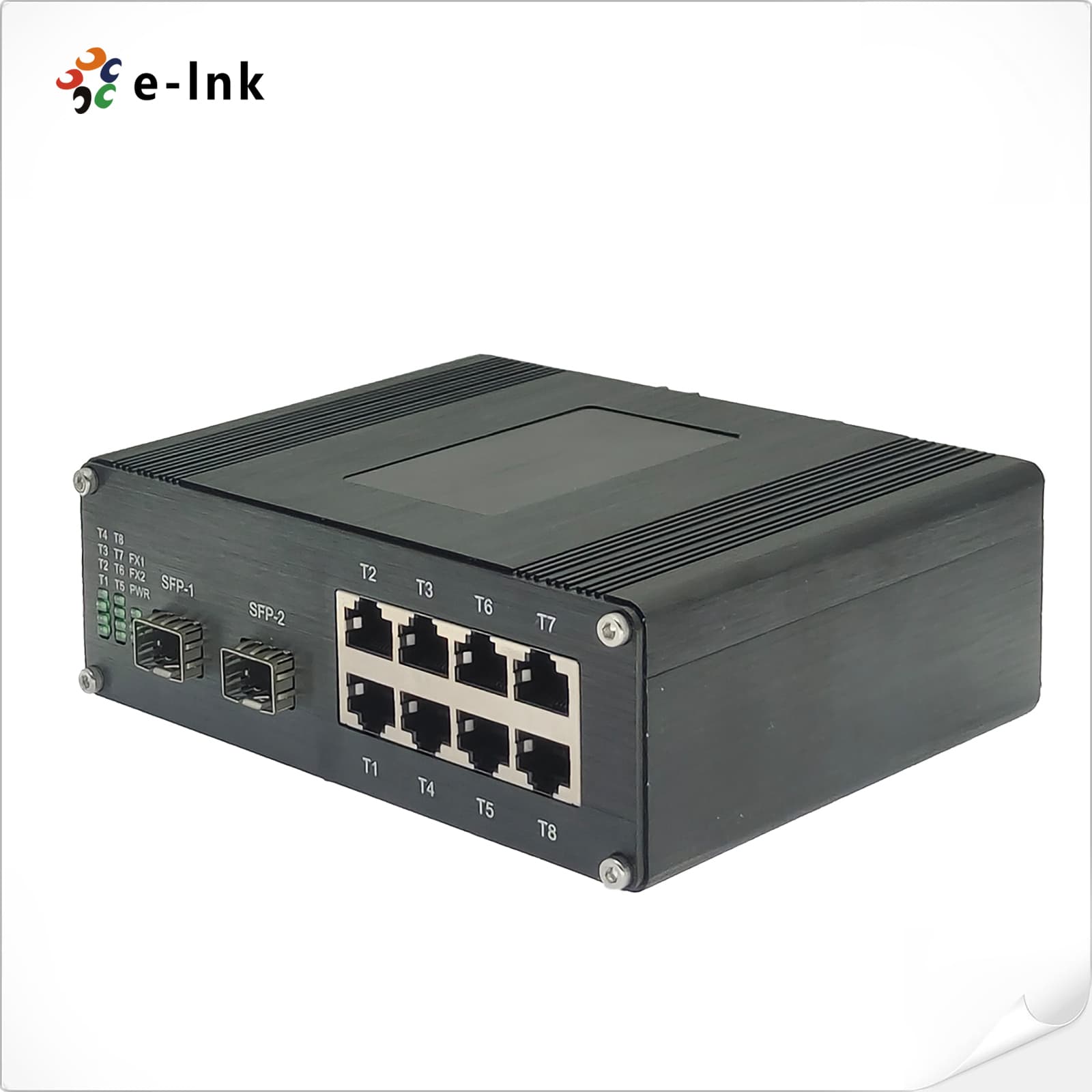

Switch Industrial 8-Port Gigabit Ethernet 802.3at PoE + 2-Port SFP Gigabit – DIN-Rail
S/489.00 Inc. IGV
La serie LNK-IMC208GP-SFP es un Switch Industrial de 8-puerto 10/100/1000T 802.3at Poe + 2-puertos 100/1000X SFP Gigabit Ethernet Switch con 48~ 57VDC de entrada y refuerzo de voltaje.
► 8 10/100/1000Base-TX + 2 1000Base-FX
► Puerto RJ45 de 10/100/1000 Mbps compatible con dúplex completo/semidúplex, negociación automática y MDI/MDIX automático
► Admite IEEE 802.3at PoE+ (30 W por puerto)
► 2 Puertos para Modulos SFP (vacios)
► Admite control de flujo 802.3x
► IEEE 802.3az Ethernet de eficiencia energética (EEE)
► Entradas de energía redundantes

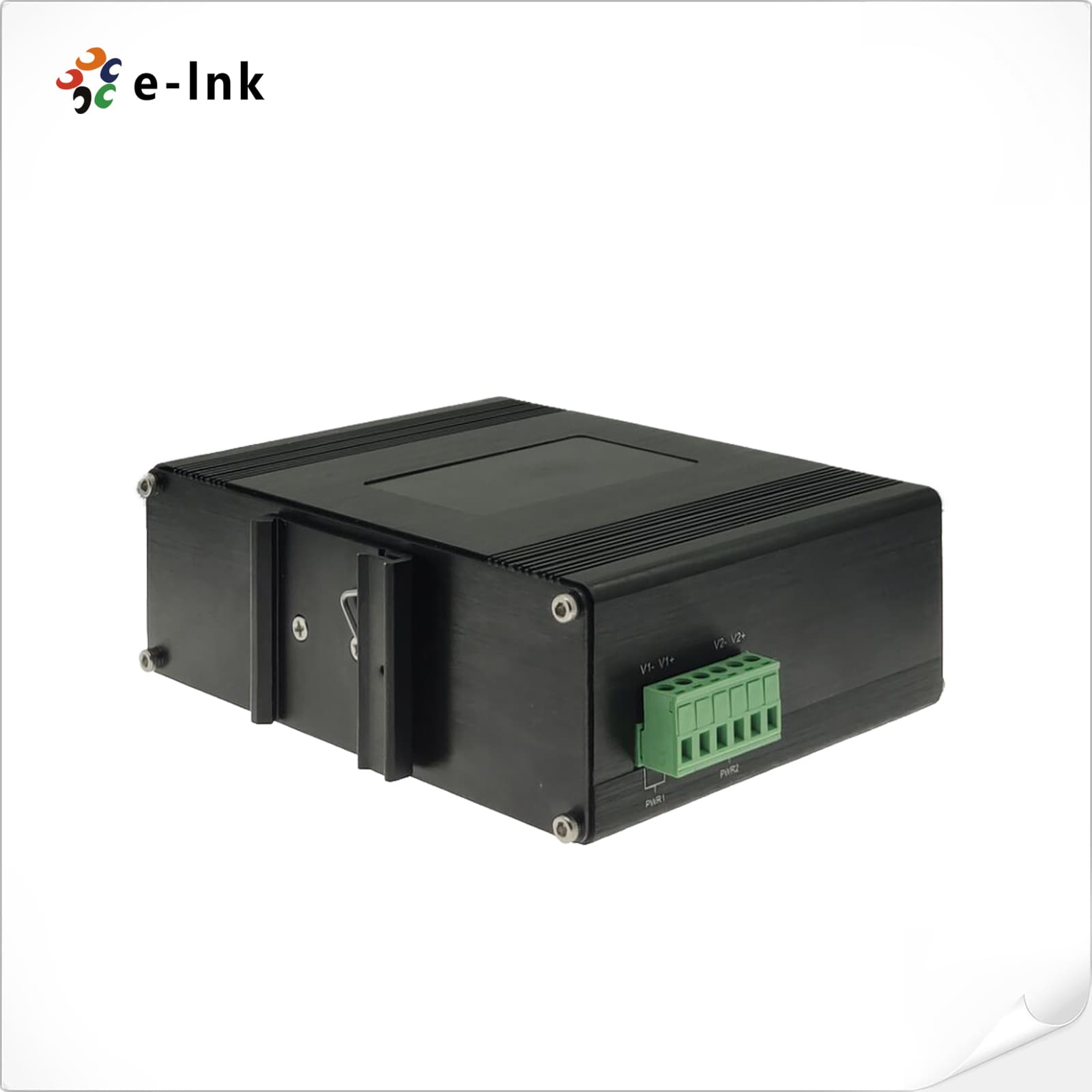

► Admite instalación en carril DIN
► Temperatura de funcionamiento de -40 °C a 80 °C (-40 °F a 176 °F).
ESPECIFICACIONES:
| Ethernet | |
| Standards: | IEEE802.3 10BASE-T |
| IEEE802.3u 100BASE-TX/FX | |
| IEEE802.3ab 1000BASE-T | |
| IEEE802.3z 1000BASE-X | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer Memory: | 2.75M bits |
| Processing Type: | Store-and-Forward |
| Max Packet Length: | 9K Bytes Jumbo Frame |
| Address Table Size: | 4K MAC Addresses |
| Interface | |
| Connector: | 8 x RJ45 |
| Optical Port: | 2 x 1000Base-FX (SFP) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 48~57VDC,Redundant Power (6-pin Terminal Block) |
| Power Consumption: | 253W Max. (PoE in use) |
| 5W Max. (PoE not in use) | |
| Standard: | IEEE802.3af/at |
| PoE: | |
| Port: | RJ45 Port 1 ~ Port 8 |
| Max. Power per Port: | 30W Max per port (Alternative B Mode) |
| Protection: | |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| LED Indicators: | |
| Power: | Power1, Power2 Status |
| PoE: | Per Port Status |
| Ethernet(Per Port): | Link/Activity |
| Fiber: | FX1, FX2 |
| Dimensions (WxDxH): | 150 x 115 x 50 mm |
| Weight: | 0.6Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55024:2010 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
