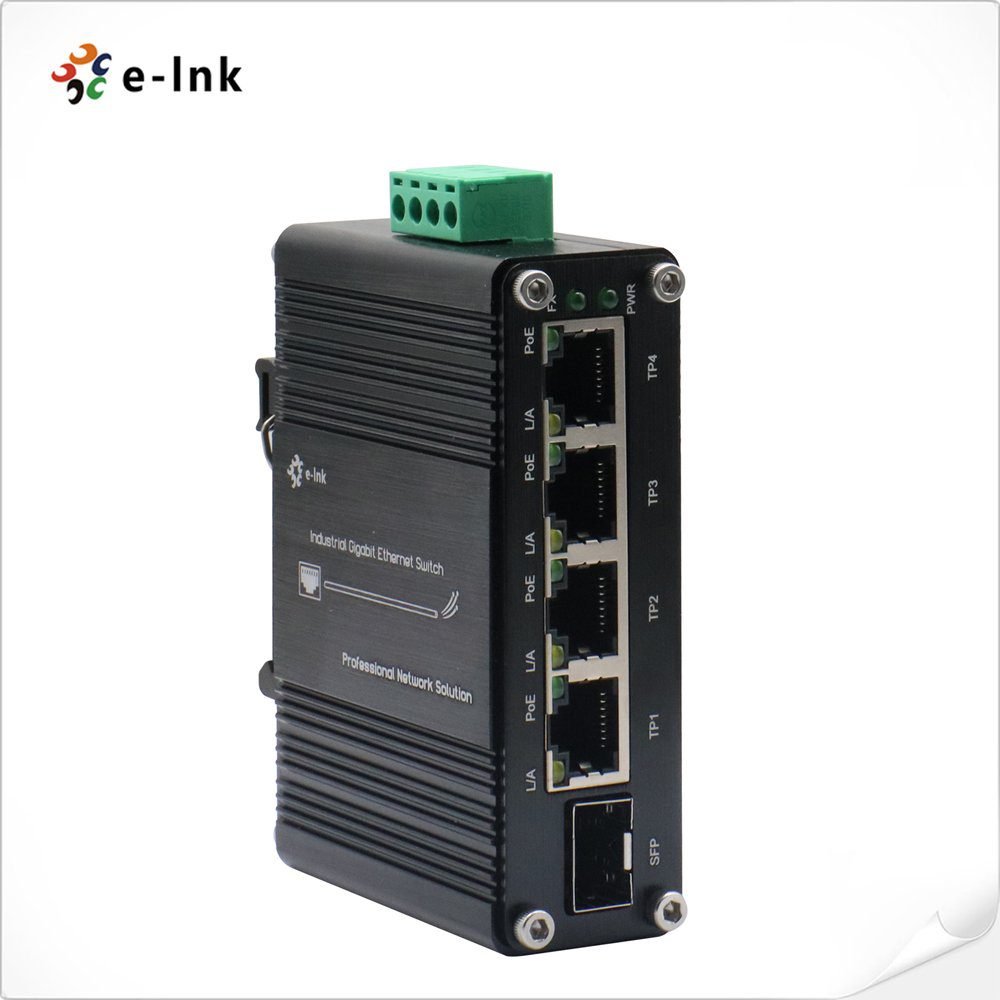

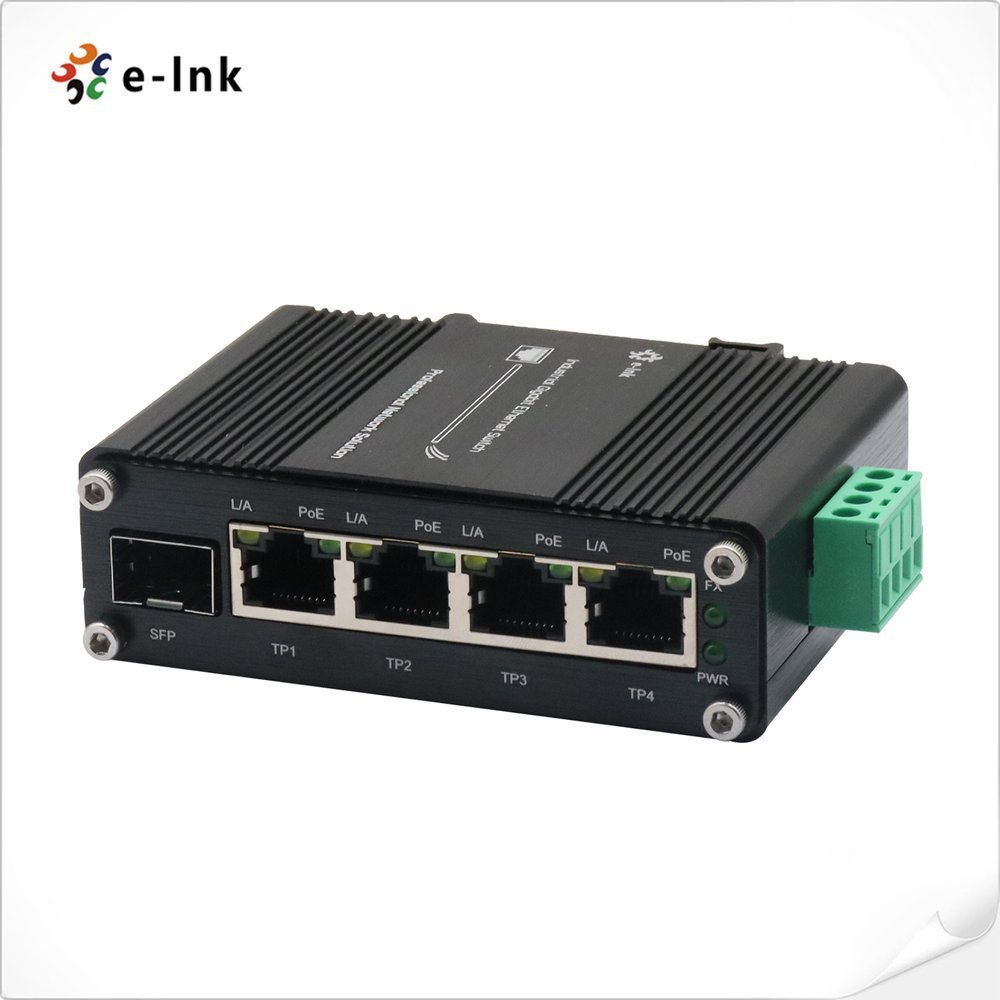

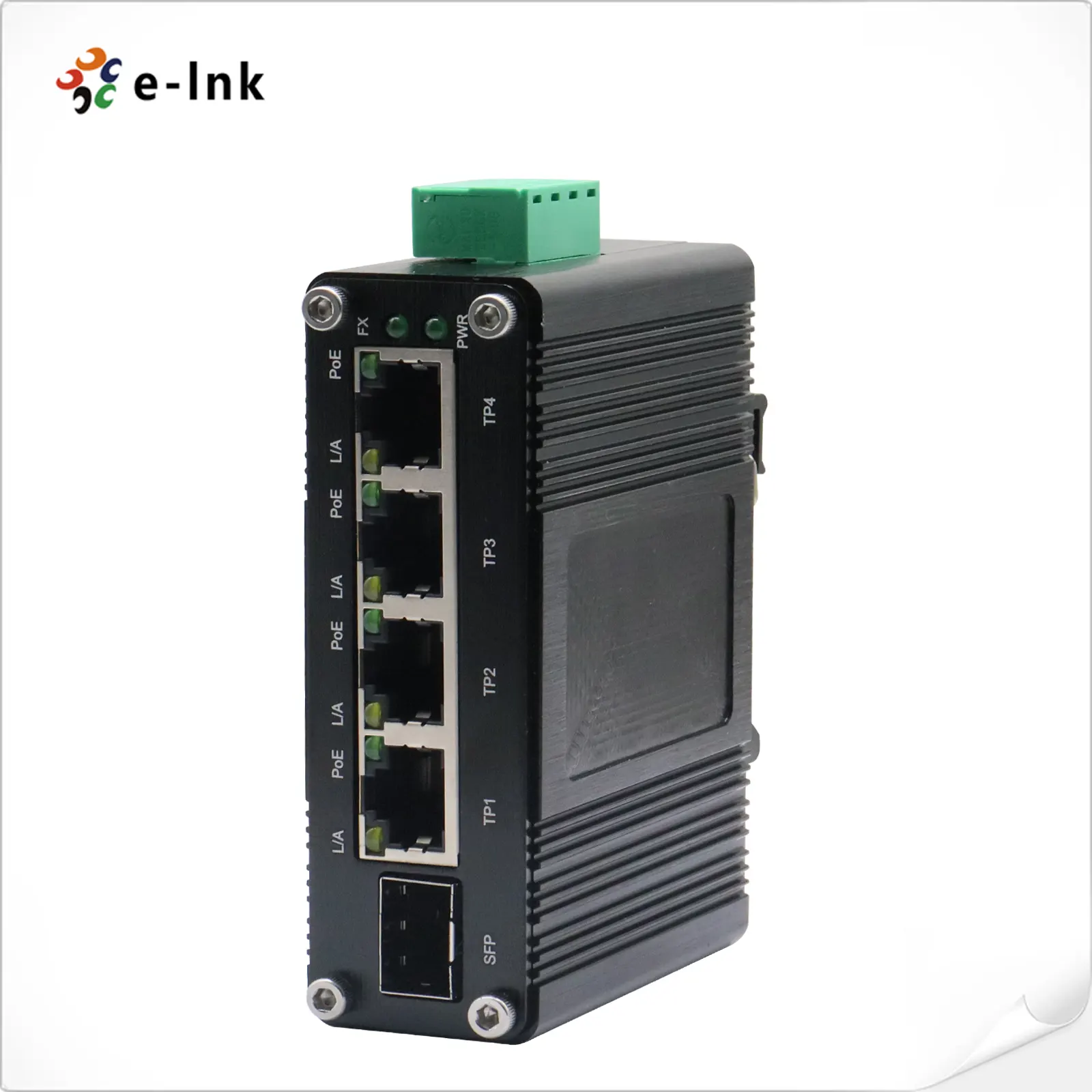

Switch Industrial 4-Puertos RJ45 Gigabit 802.3at PoE + 1-Puerto SFP 1Gb E-Link
S/332.50 Inc. IGV
El Switch LNK-IMC104GP-SFP es un conmutador Industrial de 4-puertos Ethernet Gigabit 802.3at PoE + 1-puerto SFP 1Gb, con entrada de alimentacion de 12 ~ 48VDC.
CARACTERÍSTICAS:
– 100/1000BASE-X SFP slots for SFP type auto detection
– 4 – 10/100/1000BASET RJ45 auto-MDI/MDI-X ports with IEEE 802.3at PoE+ Injector (Port-1 to Port-4)
– 12~48VDC wide range power input with power booster function
– Supports 802.3x Flow control
– Supports DIN-Rail and Wall-mount installation
– Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
– Industry standard design, dustproof and close design IP40, rugged high-strength metal case
– -40°C to 80°C (-40°F to 176°F) operating temperature
ESPECIFICACIONES:
| Ethernet | |
| Standards: | IEEE 802.3 Ethernet |
| IEEE 802.3u Fast Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3x Full-Duplex Flow Control | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| IEEE 802.3at Power over Ethernet Plus PSE | |
| IEEE 802.3af Power over Ethernet Plus | |
| Forward & Filtering Rate: | 14,880pps (10Mbps) |
| 148,800pps (100Mbps) | |
| 1,488,000pps (1000Mbps) | |
| Packet Buffer: | 1Mbits |
| Packet Length: | 10Kbytes |
| MAC Address Table: | 8K |
| Switch Fabric: | 10Gbps/non-blocking |
| Exchange Property | Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps |
| Connector: | 4 ports with 802.3at PoE+ injector function (Ports 1 to 4) |
| Interface | |
| Connector: | 4 x RJ45 |
| Optical Port: | 1 x SFP 1000Base-X or 100Base-FX (auto detection) |
| PoE (Power over Ethernet) | |
| Standard: | IEEE802.3af/at |
| Port: | RJ45 |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| PoE Budget: | Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC) |
| Environmental | |
| Operating Temperature: | -40°C to 80°C (-40°F to 176°F) |
| Storage Temperature: | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity: | 5% to 95% non-condensing |
| MTBF | > 200,000 hrs |
| Electrical and Mechanical | |
| Input Power: | 12~48VDC(Terminal Block) |
| Power Consumption: | <125W (Non-PoE<6W) |
| Power Input Overload: | Automatic Resettable |
| Reverse Polarity: | Present |
| Dimensions (WxDxH): | 95 x 70x 29mm |
| Weight: | 0.25Kg |
| Casing: | Aluminum Case |
| Mounting Options: | DIN-Rail / Wall-mount |
| LED Indicators: | |
| PWR: | Power |
| L/A: | Link/Activity |
| PoE: | PoE Status |
| Regulatory Approvals | |
| ISO9001 | |
| EN55022:2010+AC: 2011, Class A | |
| EN 61000-3-2: 2006+A1: 2009+A2: 2009 | |
| EN 61000-3-3: 2013 | |
| EN55032:2017 | |
| IEC 61000-4-2: 2008 (ESD) | |
| IEC 61000-4-3: 2010 (RS) | |
| IEC 61000-4-4: 2012 (EFT) | |
| IEC 61000-4-5: 2014 (Surge) | |
| IEC 61000-4-6: 2013 (CS) | |
| IEC 61000-4-8: 2009 (PFMF) | |
