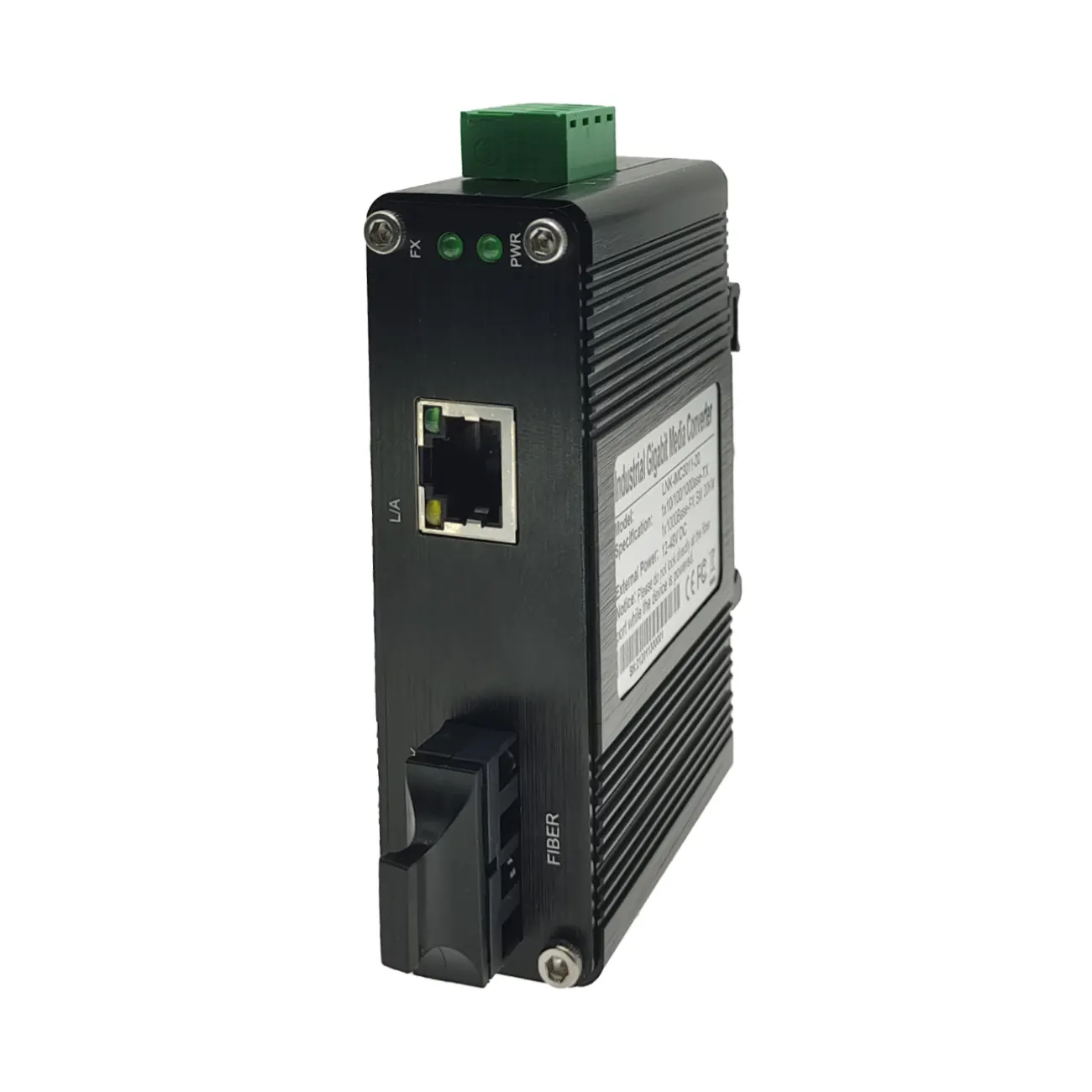

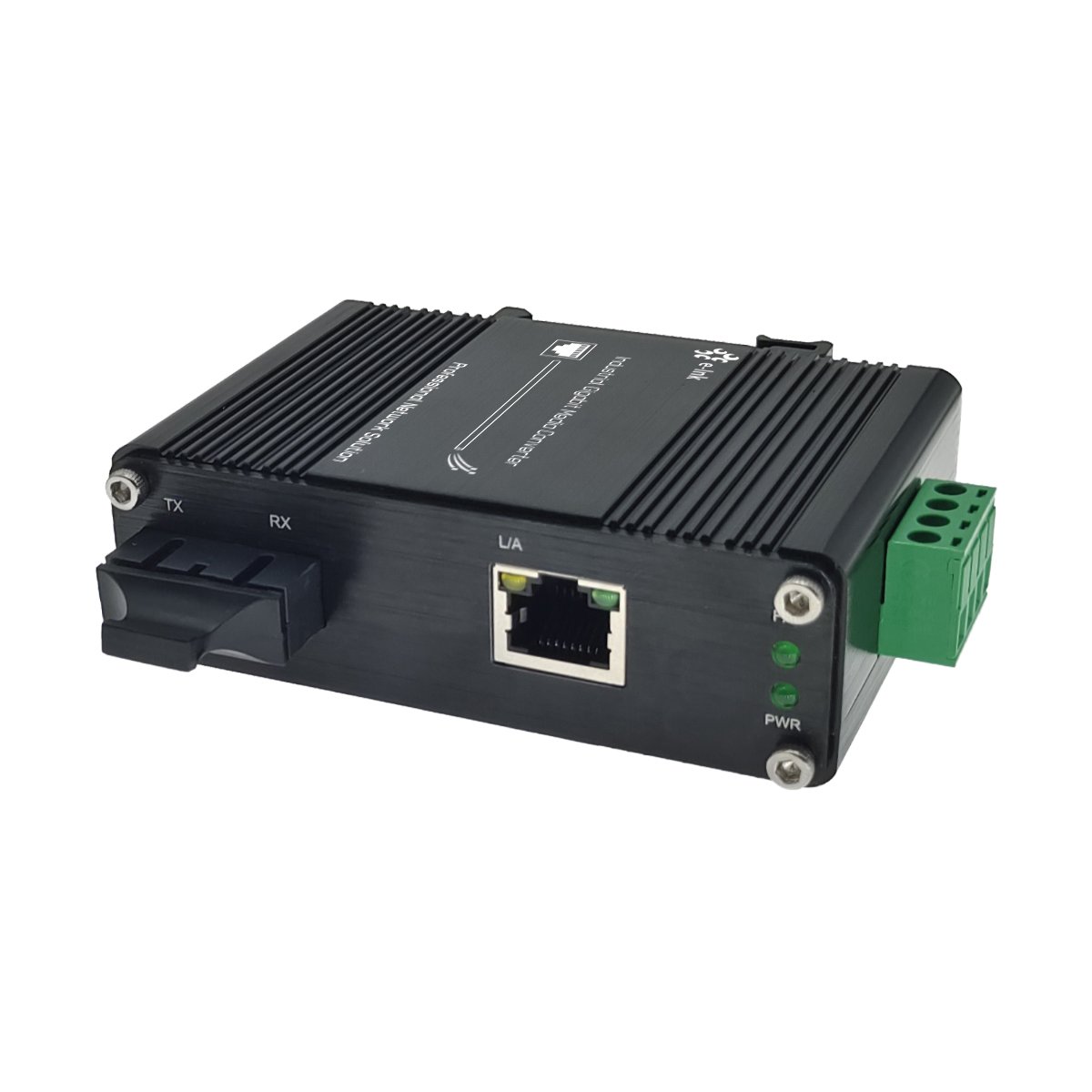

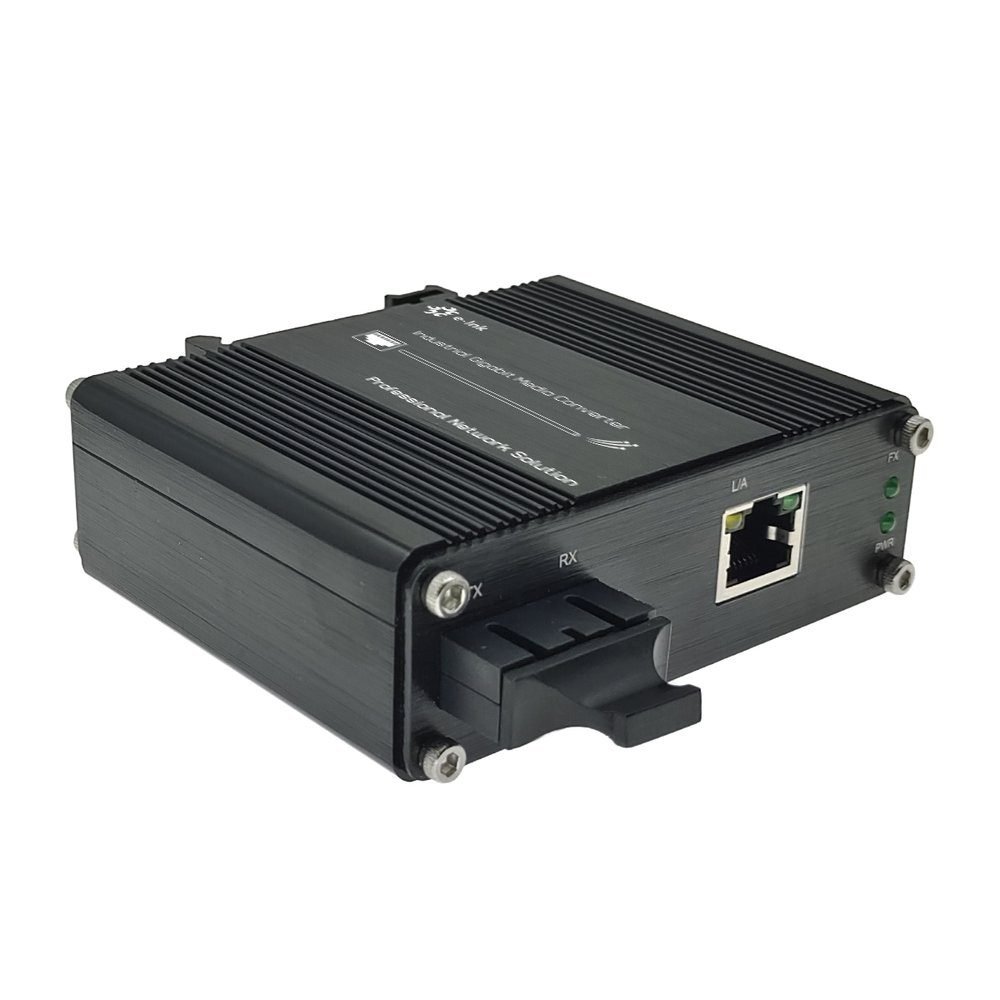

Media Converter Industrial RJ45 Ethernet Gigabit a Fibra monomodo Duplex SC, 1310nm, 20Km LNK-IMC3012-20 E-Link

SKU: LNK-IMC3012-20 Marca: E-Link

S/455.00 Inc. IGV

La serie LNK-IMC3012-20 proporciona conversión de medios entre fibra 10/100/1000BASE-T y 100/1000BASE-X. Es un producto industrial con un amplio rango de temperatura de funcionamiento de -40 °C a 75 °C y una carcasa de aluminio resistente.
Media Converter Industrial, 10/100/1000Base-T Ethernet a Fibra 1000Base-X, monomodo, 20km, 1310nm, SC,
standalone, Support DIN-Rail mounting and Wall mounting installation,
12~48VDC power input, (no power supply adapter include)
El puerto Ethernet admite tanto el modo semidúplex como el modo dúplex completo. El diseño robusto del hardware garantiza que su equipo Ethernet pueda soportar condiciones industriales exigentes.

Categorías: Media Converter, Redes

Descripción

► 1-Port 10/100/1000BASE-T RJ45 Gigabit with auto MDI / MDI-X function

► 1 SC/UPC Duplex Port, 100Base-FX or 1000Base-X dual mode (auto detection)

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

ESPECIFICACIONES:

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	1x RJ45
Optical Port:	1 x SC100Base-FX or 1000Base-X dual mode (auto detection) Duplex SC/UPC
Electrical and Mechanical

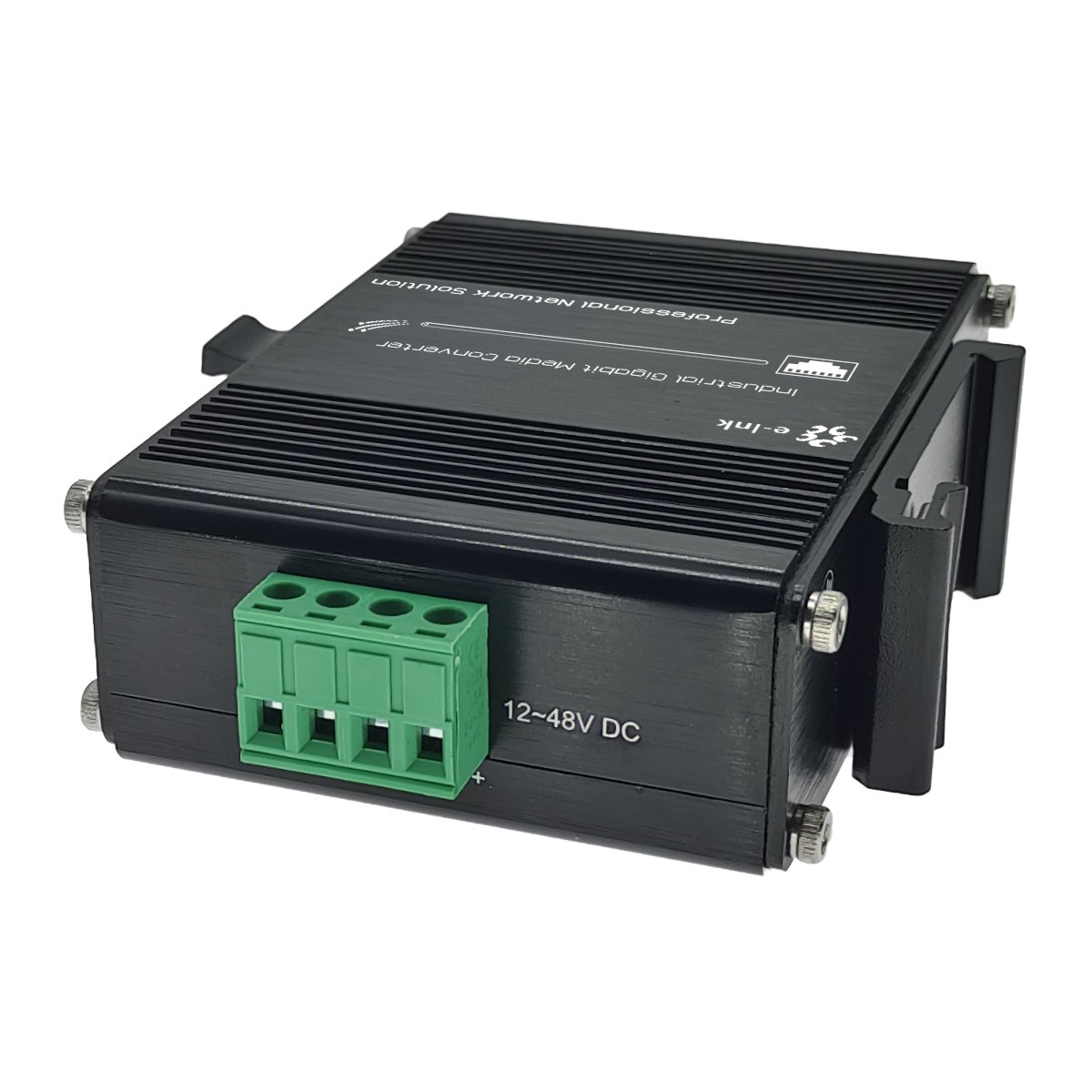

Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	3W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
SPD:	Ethernet Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	AluminumCase
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)
