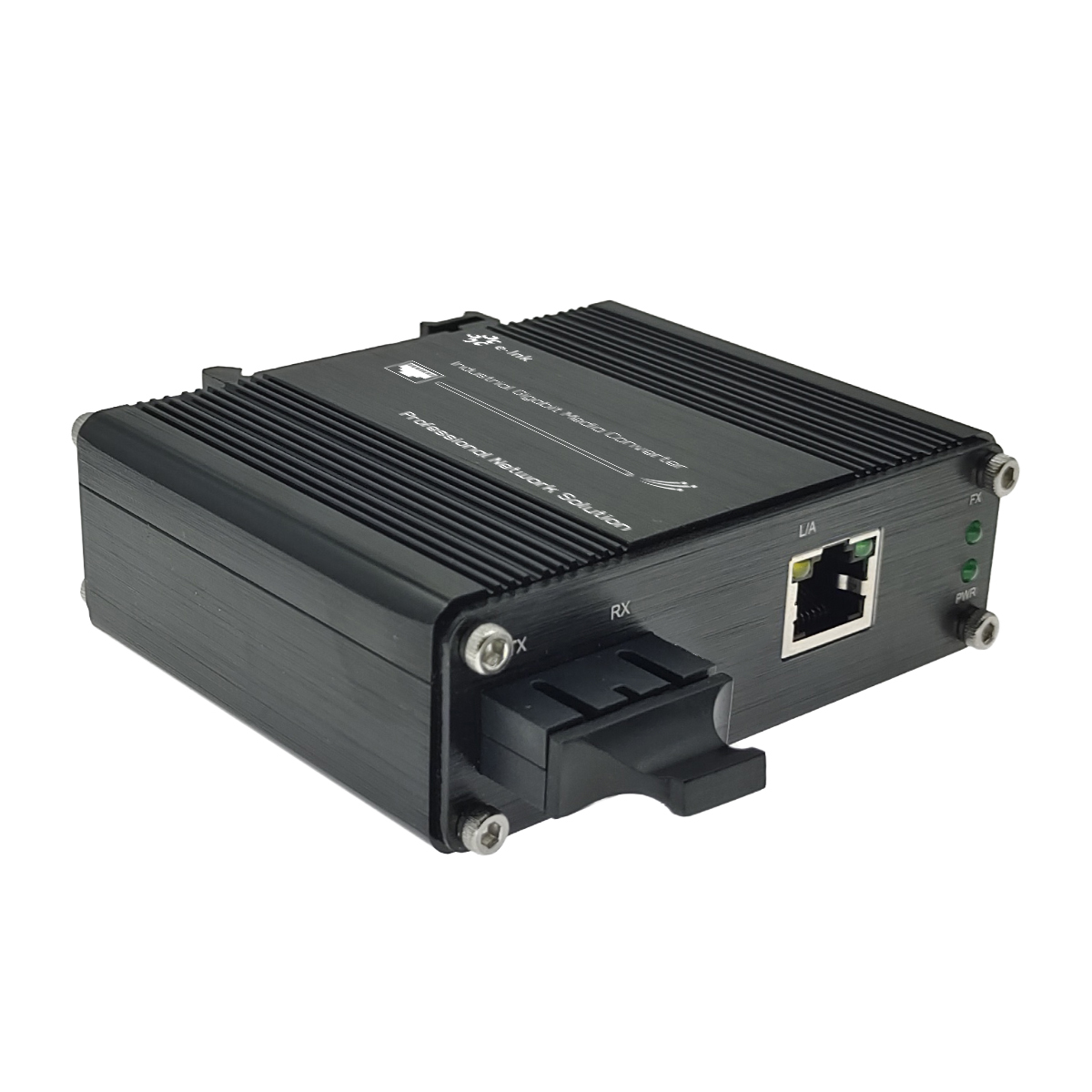

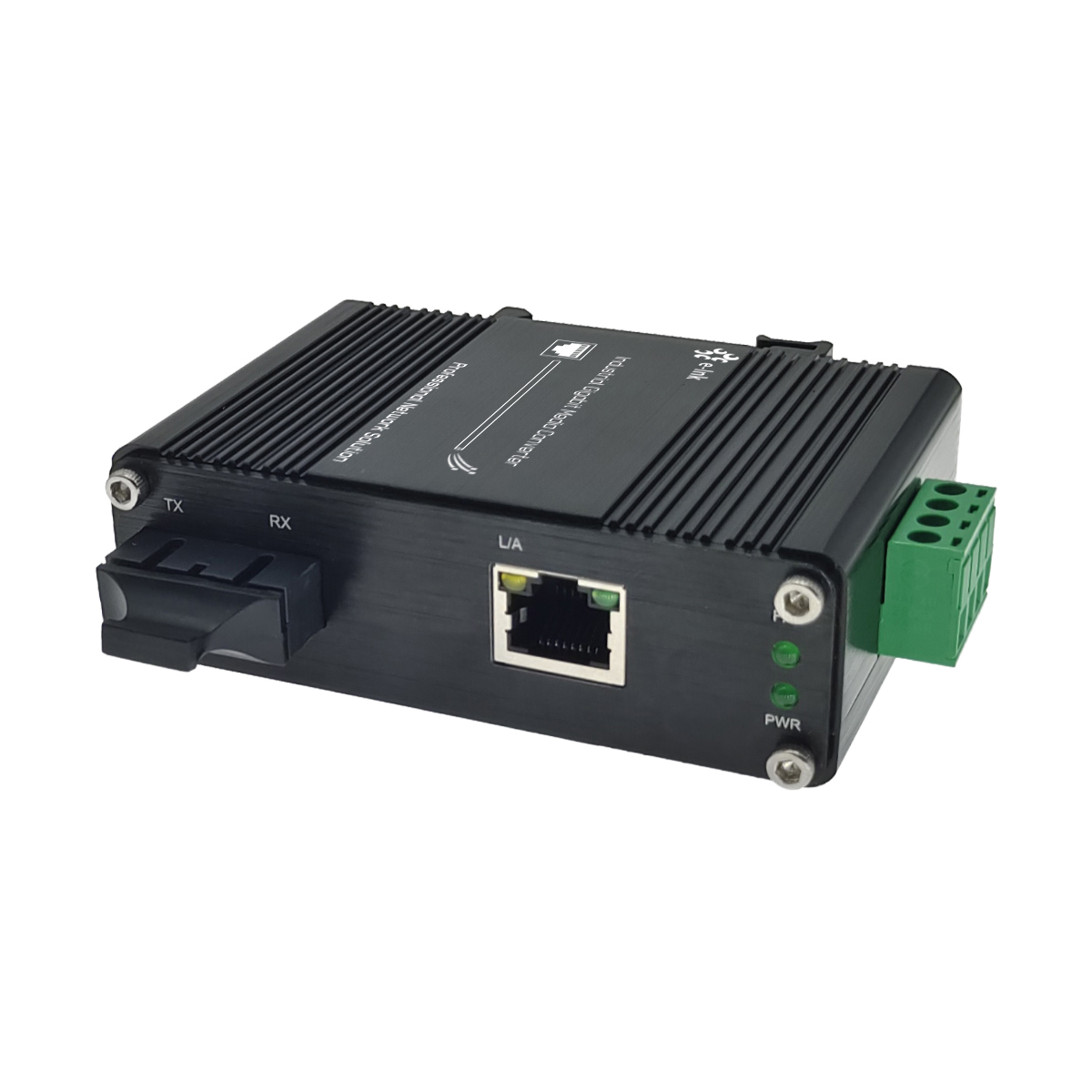

Media Converter Industrial 10/100/1000Base-T Ethernet a Fibra 1000Base-X monomodo SC, 1310nm, 20Km
SKU: IMC3012-20
Marca: ZhiPu
- Media Converter Industrial, 10/100/1000Base-T Ethernet a Fibra 1000Base-X, monomodo, 20km, 1310nm, SC,
- standalone, Support DIN-Rail mounting and Wall mounting installation,
- 12~48VDC power input, (no power supply adapter include)
- La serie ZP-IMC3012 proporciona conversión de medios entre fibra 10/100/1000BASE-T y 100/1000BASE-X. Es un producto industrial con un amplio rango de temperatura de funcionamiento de -40 °C a 75 °C y una carcasa de aluminio resistente.
- El puerto Ethernet admite tanto el modo semidúplex como el modo dúplex completo. El diseño robusto del hardware garantiza que su equipo Ethernet pueda soportar condiciones industriales exigentes.
Precio en soles: S/496.60
AGREGAR A CARRITO
- Compártelo con:
CARACTERÍSTICAS:
|
► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function ► 1 SC Port, 100Base-FX or 1000Base-X dual mode (auto detection) ► Supports Full/Half-duplex, Auto-negotiation ► IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
ESPECIFICACIONES:
|
Ethernet |
|
|
Standards: |
IEEE802.3 10Base-T |
|
IEEE802.3u 100Base-TX/FX |
|
|
IEEE802.3ab 1000Base-T |
|
|
IEEE802.3z 1000Base-X |
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE) |
|
|
Processing Type: |
Store-and-Forward |
|
Forward Filter Rate: |
14,880pps (10Mbps) |
|
148,800pps (100Mbps) |
|
|
1,488,000pps (1000Mbps) |
|
|
Packet Buffer Memory: |
1 Mbit |
|
Max Packet Length: |
9K Bytes |
|
Address Table Size |
2K MAC Addresses |
|
Interface |
|
|
Connector: |
1x RJ45 |
|
Optical Port: |
1 x SC100Base-FX or 1000Base-X dual mode (auto detection) |
|
Electrical and Mechanical |
|
|

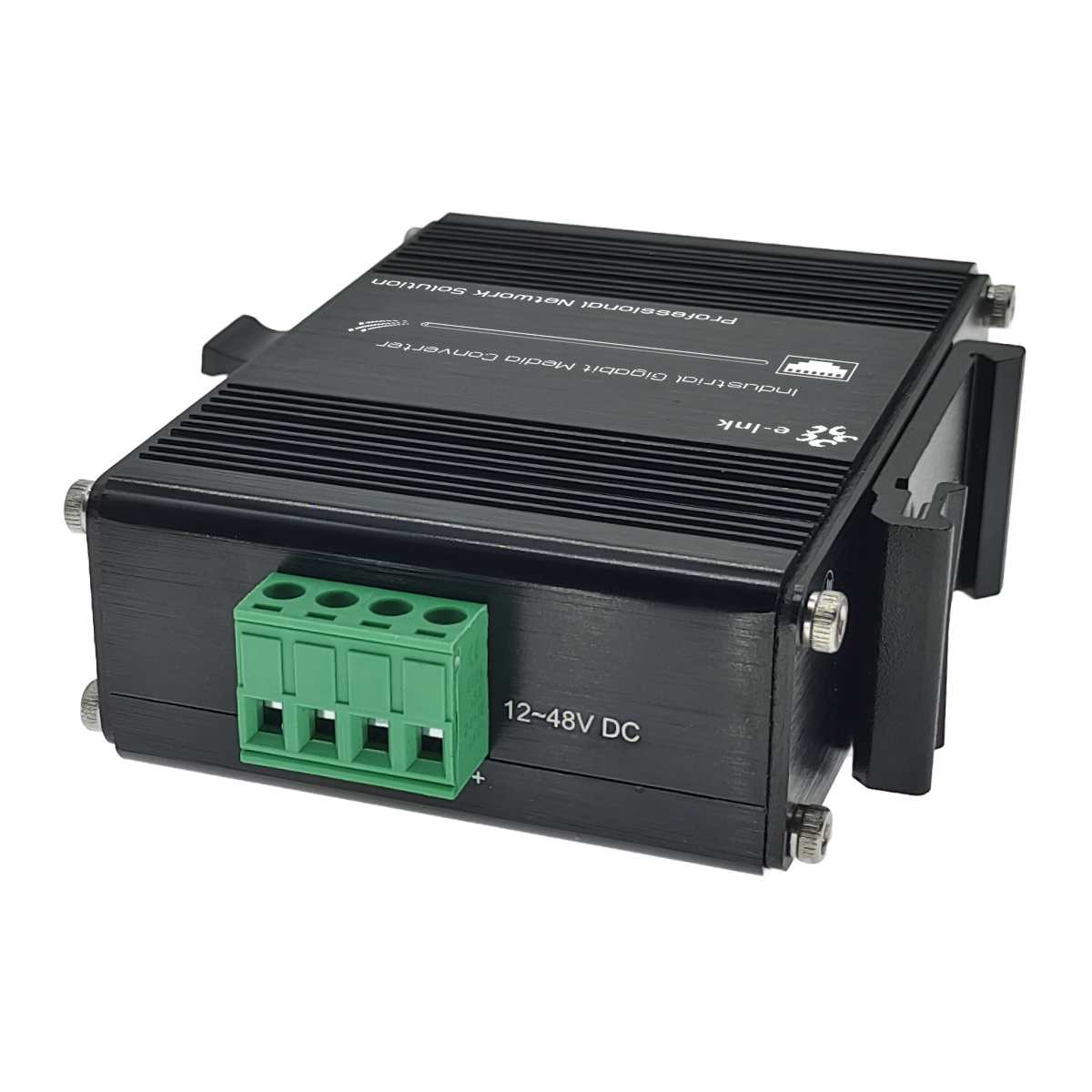

Input Power: |
12~48VDC, 2-pin terminal block |
|
Power Consumption: |
3W Max. |
|
LED Indicators: |
|
|
PWR: |
Power Status |
|
L/A: |
Data LINK Status |
|
SPD: |
Ethernet Status |
|
100M/1000M: |
Fiber LINK Status |
|
Dimensions (WxDxH): |
95 x 70 x 30 mm |
|
Weight: |
0.25Kg |
|
Casing: |
AluminumCase |
|
Mounting Options: |
DIN-Rail / Wall-mount |
|
Environmental |
|
|
Operating Temperature: |
-40°C to 75°C (-40°F to 167°F) |
|
Storage Temperature: |
-40°C to 85°C (-40°F to 185°F) |
|
Relative Humidity: |
5% to 95% non-condensing |
|
MTBF |
> 200,000 hrs |
|
Regulatory Approvals |
|
|
ISO9001, CE, FCC, RoHS |
|
|
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010 |
|
|
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF) |
|
DIRECTAMENTE
POR ESTE PRODUCTO
- Garantía: 12 meses
- Condición: nuevo
- Stock: disponible
Aceptamos pagos con visa en establecimiento.
