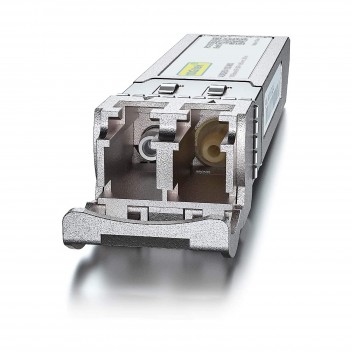

10GBase-SR SFP+ Transceiver, 10G 850nm MMF, up to 300 meters -10Gtek
SKU: AXS85-192-M3
Marca: 10Gtek
- 10Gtek AXS85-192-M3 is a 10Gbps SFP+ transceiver supporting up to 300 meters transmission over OM3 MMF fiber or 82 meters over OM2 MMF fiber or 26 meters over OM1 MMF fiber, this module following IEEE 802.3ae and SFP+ MSA 10GBase-SR. The SFP+ transceiver consists of VCESL laser, PIN-(tia), Driver IC and eeprom I2C unit based on COB (Chip on Board) technology
Precio en soles: S/152.80
AGREGAR A CARRITO
- Compártelo con:
CARACTERÍSTICAS:
| ● 10GBase-SR ● Data Rate: 10G, multi-rate ● Wavelength: 850-nm ● Reach: up to 300-meter ● Fiber Type: OM3/OM4 multi-mode fiber ● Interface: Dual LC connectors |
|
ESPECIFICACIONES:
FP+ 10Gb/s, 10GBase-SR, MMF, 850nm 300M
The AXS85-192-M3 850nm VCESL 10Gigabit Transceiver is designed to transmit and receive serial optical data links up from8.5 Gb/s to 10.51875 data rate over multimode fiber.
The Transceiver is compliant with FC-PI-4,10G FC,IEEE 802.3ae,SFF-8432,and applicable portions of SFF-8431.
The transmitter converts serial CML electrical data into serial optical data.
An open collector compatible Transmit Disable (Tx_Dis) is provided.
When TX_DIS is asserted High,Transmitter is turned off.
The receiver converts serial optical data into serial CML electrical data.
An open collector compatible Loss of Signal is provided.
The RX_LOS signal indicates insufficient optical power for reliable signal reception at the receiver.
Digital diagnostics functions are available via a 2-wire serial interface,as specified in SFF-8472.
Operating data rate up to 10.3Gbps
850nm VCESL Transmitter
Distance up to 300m @50 / 125 um MMF
Single 3. 3V Power supply and TTL Logic Interface
Duplex LC Connector Interface, Hot Pluggable
Compliant with MSA SFP+ Specification SFF-8431
Compliant with 10G 1200-M5-SN-I and 1200-M6-SN-I FC standard
Compliant with 8.5G 800-M5-SN-I and 800-M6-SN-I FC standard
Compliant with 4.25G 400-M5-SN-I and 400-M6-SN-I FC standard
Compliant with 2.125G 200-M5-SN-I and 200-M6-SN-I FC standard
Compliant with 1.0625G 100-M5-SN-I and 100-M6-SN-I FC standard
Compliant with IEEE 802.3ae 10GBASE-SR/SW
Operating Case Temperature Standard:0℃~+70℃
